Earthing Accessories | High Voltage Underground Cable

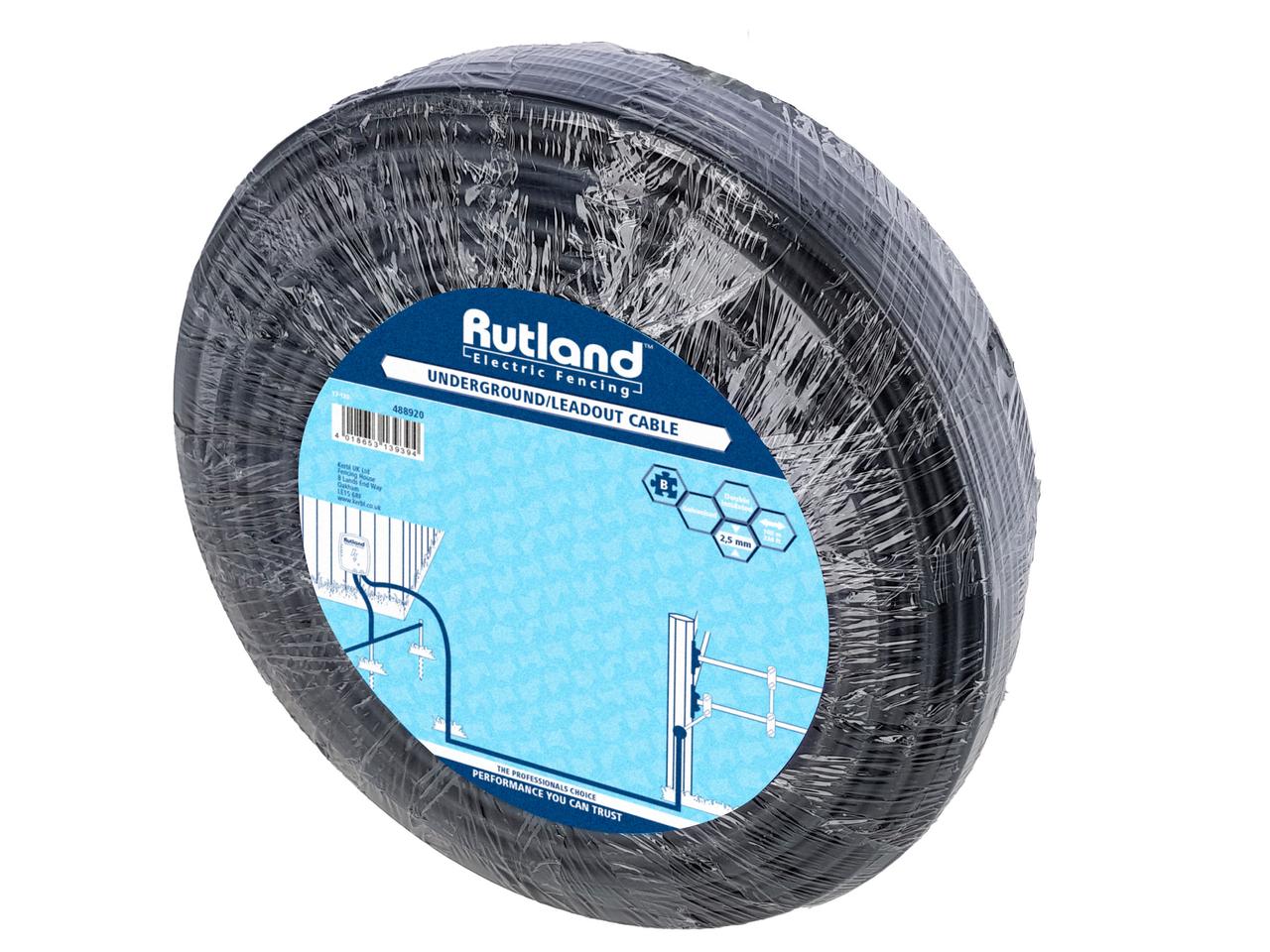

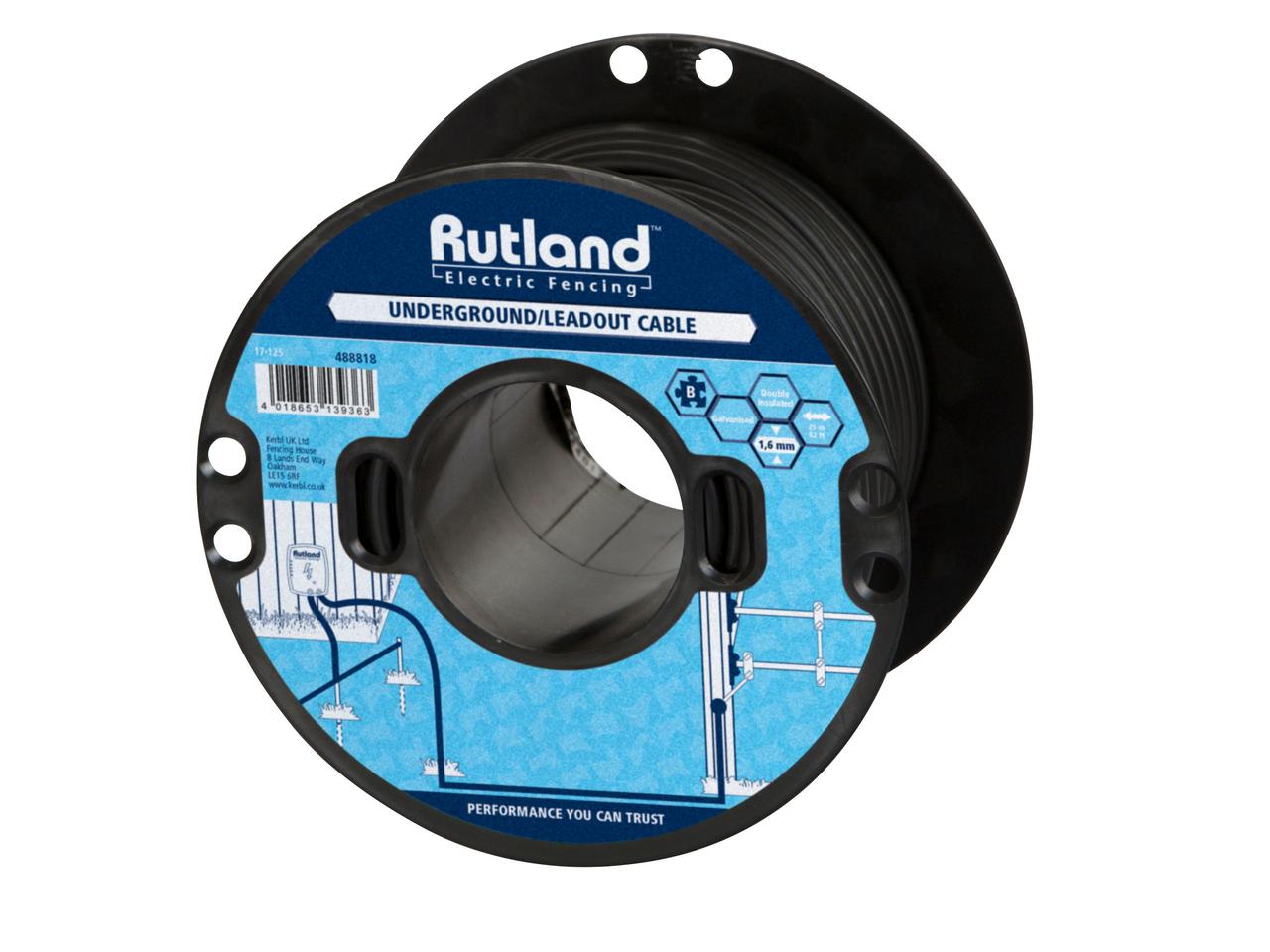

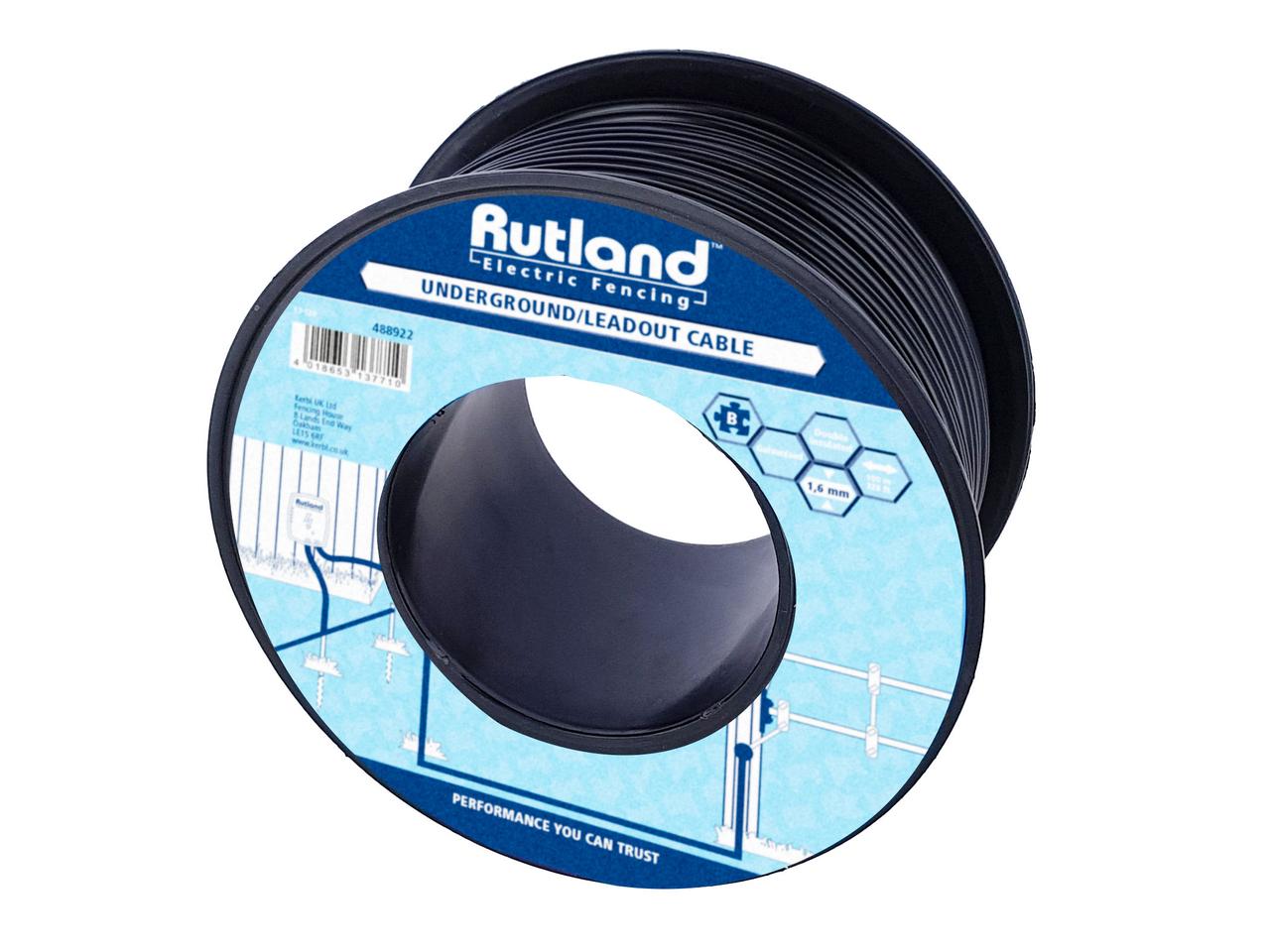

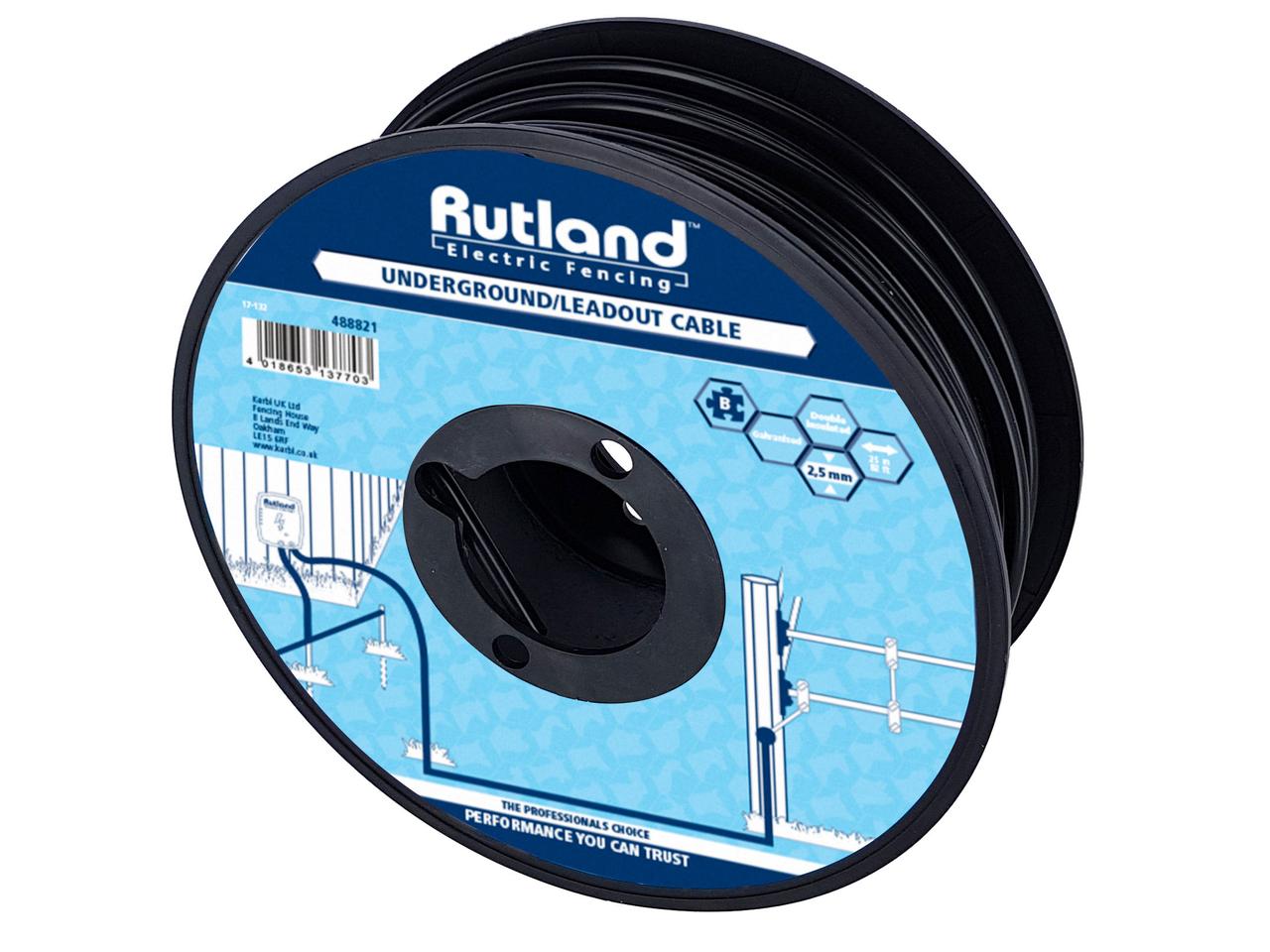

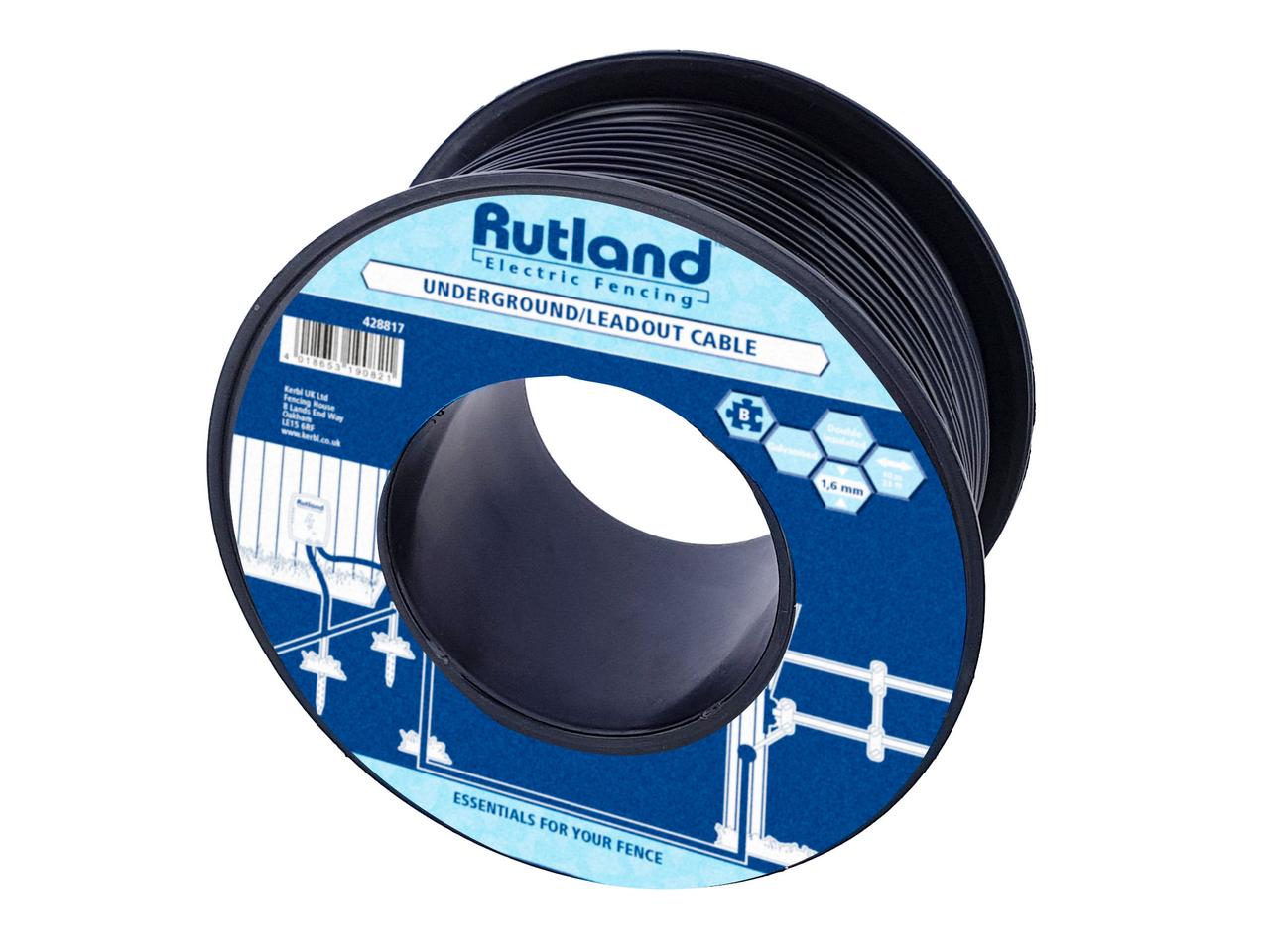

High Voltage Underground Cable
- double-insulated with galvanized steel wire core
- for fence and earth cables
- ideal for permanent fence systems
| Ref. no. | 428817 | 488818 | 488819 | 488920 | 488921 | 488922 |
|---|
| Colour | black | black | black | black | black | black |
|---|
| Cable Length | 10 m | 25 m | 50 m | 100 m | 50 m | 100 m |
|---|
| Exterior Diameter | 6 mm | 6 mm | 7.2 mm | 7.2 mm | 6 mm | 6 mm |
|---|
| Conductor Diameter | 1.6 mm | 1.6 mm | 2.5 mm | 2.5 mm | 1.6 mm | 1.6 mm |
|---|
| Delivery | no reel | on a coil | on a coil | on a coil | on a coil | on a coil |
|---|
| Conductor Cross-section | 2 mm² | 2 mm² | 4.9 mm² | 4.9 mm² | 2 mm² | 2 mm² |
|---|
| Resistance Ω/m | 0.07 Ω/m | 0.07 Ω/m | 0.03 Ω/m | 0.03 Ω/m | 0.07 Ω/m | 0.07 Ω/m |
|---|
