Earthing Accessories | High Voltage Underground Cable

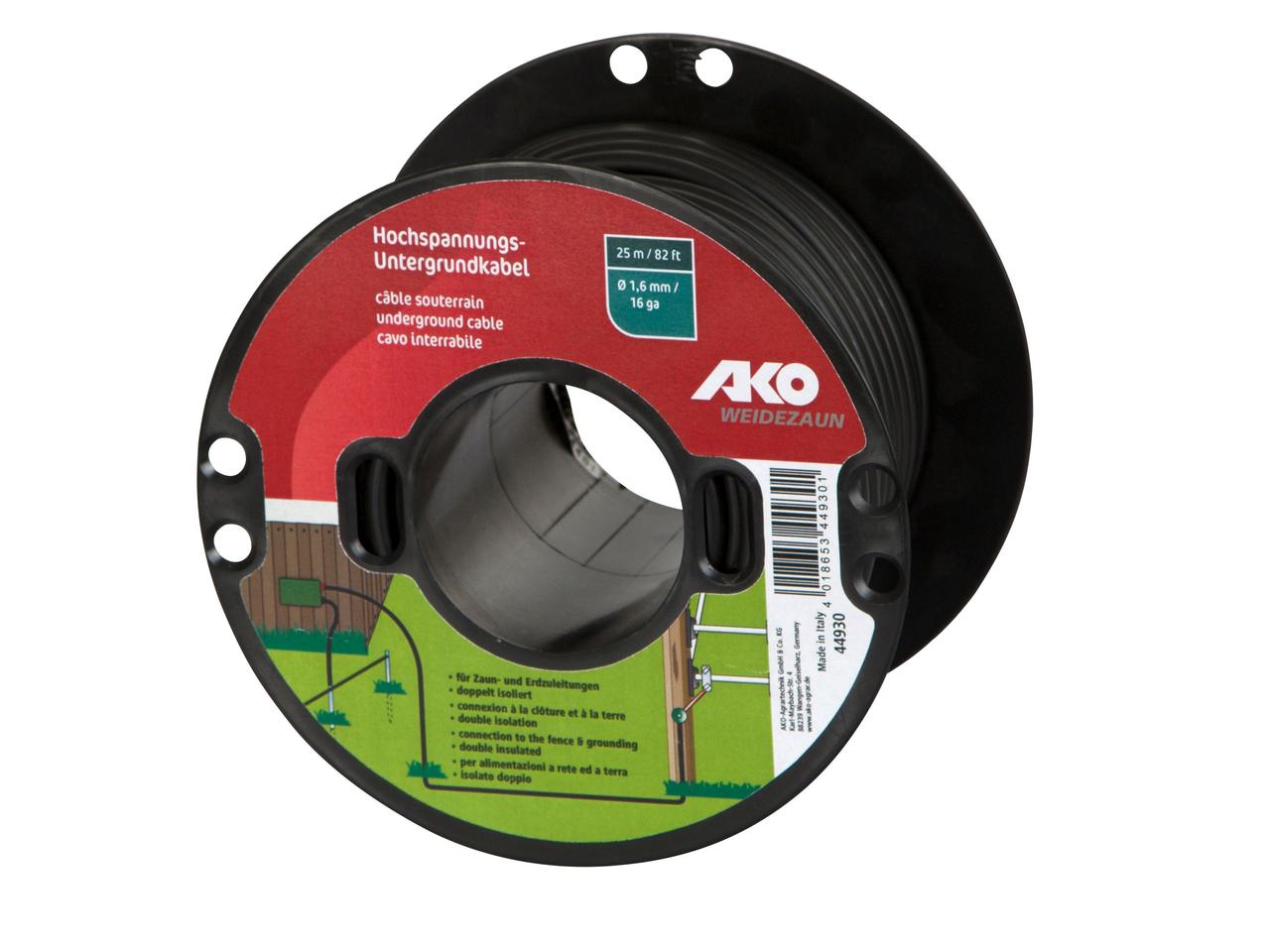

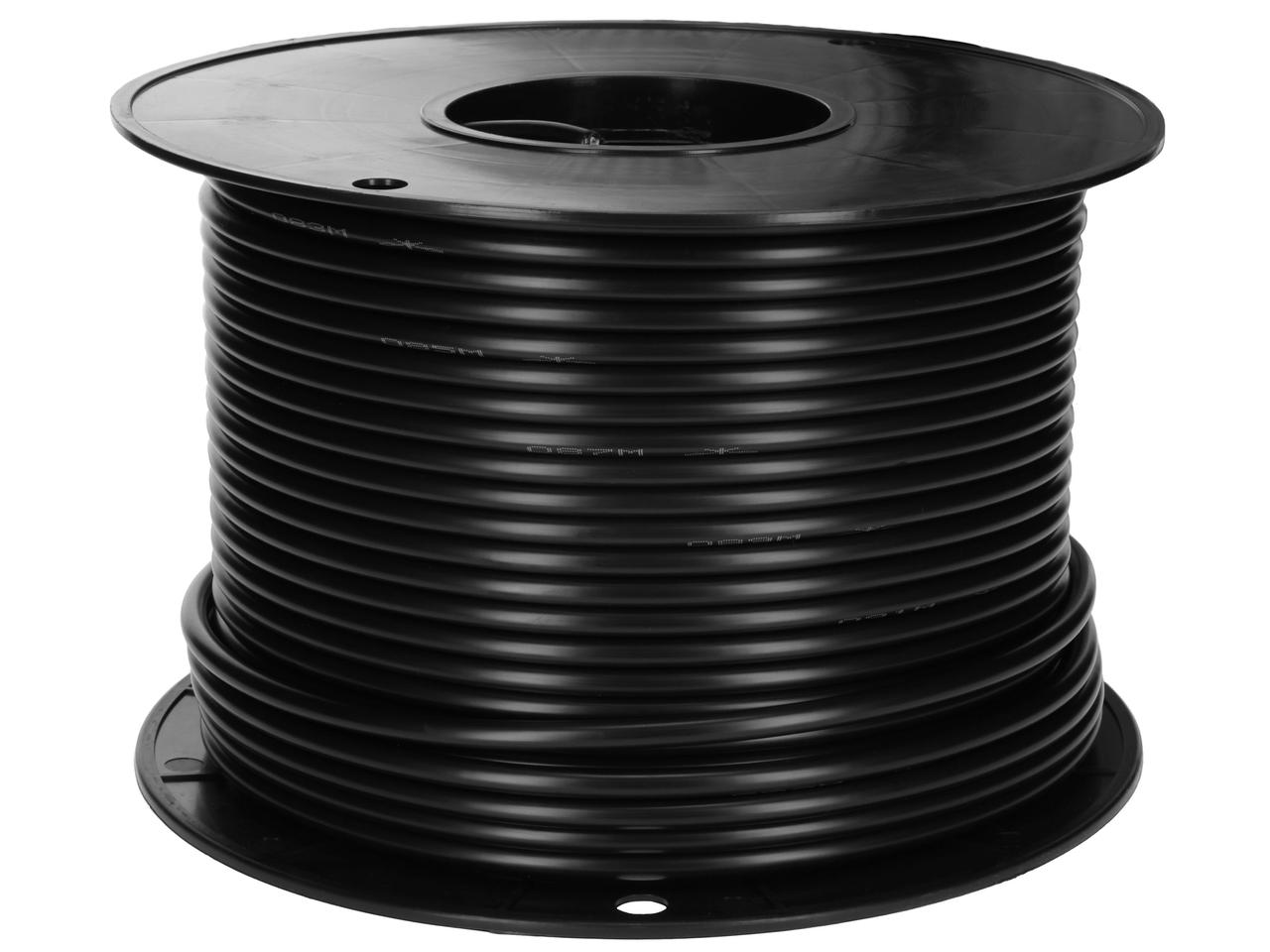

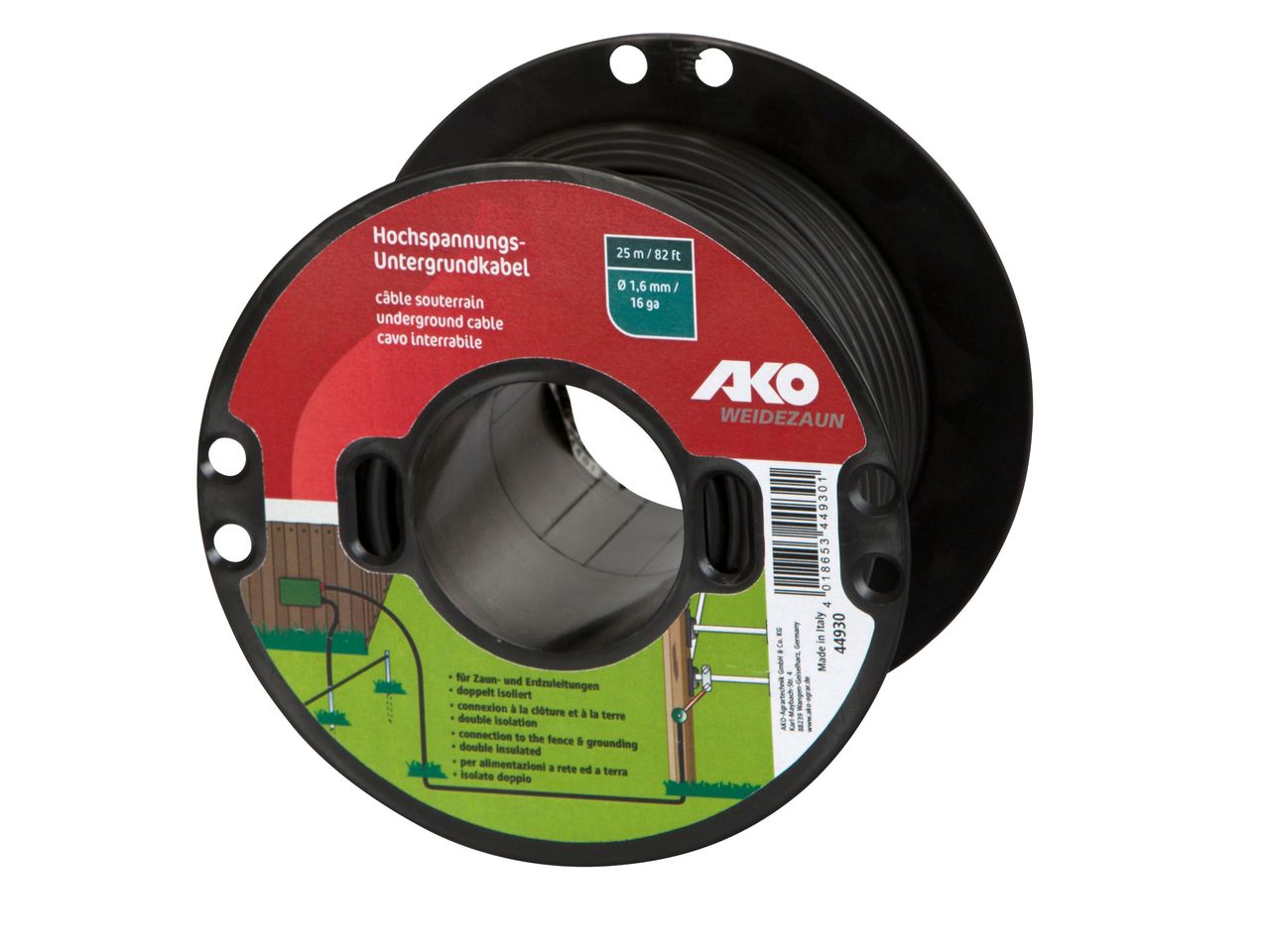

High Voltage Underground Cable

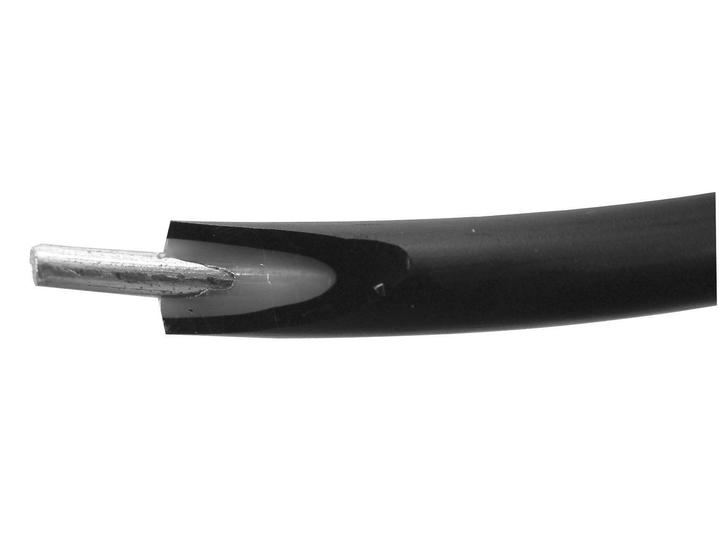

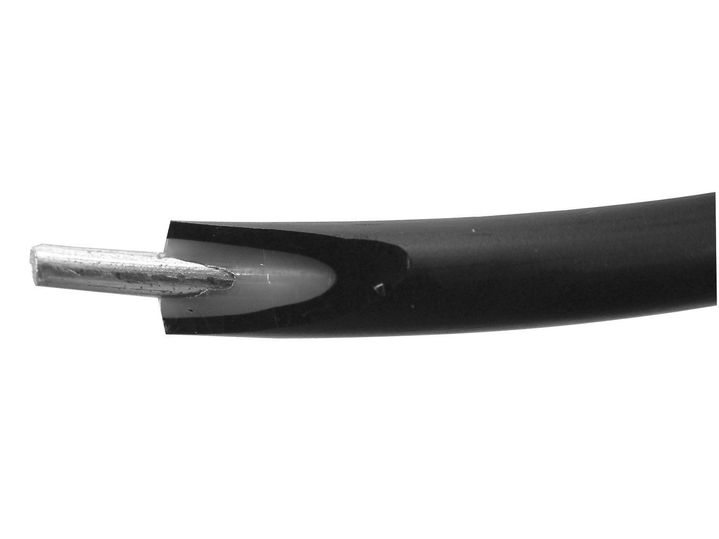

• double-insulated with galvanized steel wire core
• ideal for supply lines from the device, inside the building, to the ground rod or fence outdoors
• also suitable for connecting several ground rods
• ideal for permanent fence systems
• compatible with all standard 9 Volt, 12 Volt and 230 Volt fence devices - simply connect and conduct safely

Retailer Shop

Variations

Ref. no.	Colour	Cable Length	Exterior Diameter	Conductor Diameter	Delivery	Conductor Cross-section	Resistance Ω/m
44817	black	10 m	6 mm	1.6 mm	no reel	2 mm²	0.07 Ω/m
44818	black	25 m	6 mm	1.6 mm	on a coil	2 mm²	0.07 Ω/m
44819	black	50 m	7.2 mm	2.5 mm	on a coil	4.9 mm²	0.03 Ω/m
44920	black	100 m	7.2 mm	2.5 mm	on a coil	4.9 mm²	0.03 Ω/m
44921	black	50 m	6 mm	1.6 mm	on a coil	2 mm²	0.07 Ω/m
44922	black	100 m	6 mm	1.6 mm	on a coil	2 mm²	0.07 Ω/m
44930	black	25 m	6 mm	1.6 mm	on a coil	2 mm²	0.07 Ω/m
44931	black	50 m	7.2 mm	2.5 mm	on a coil	4.9 mm²	0.03 Ω/m
44932	black	50 m	6 mm	1.6 mm	on a coil	2 mm²	0.07 Ω/m
44933	black	100 m	6 mm	1.6 mm	on a coil	2 mm²	0.07 Ω/m
44934	black	25 m	7.2 mm	2.5 mm	on a coil	4.9 mm²	0.03 Ω/m
