230 volt devices | ESM 10000i

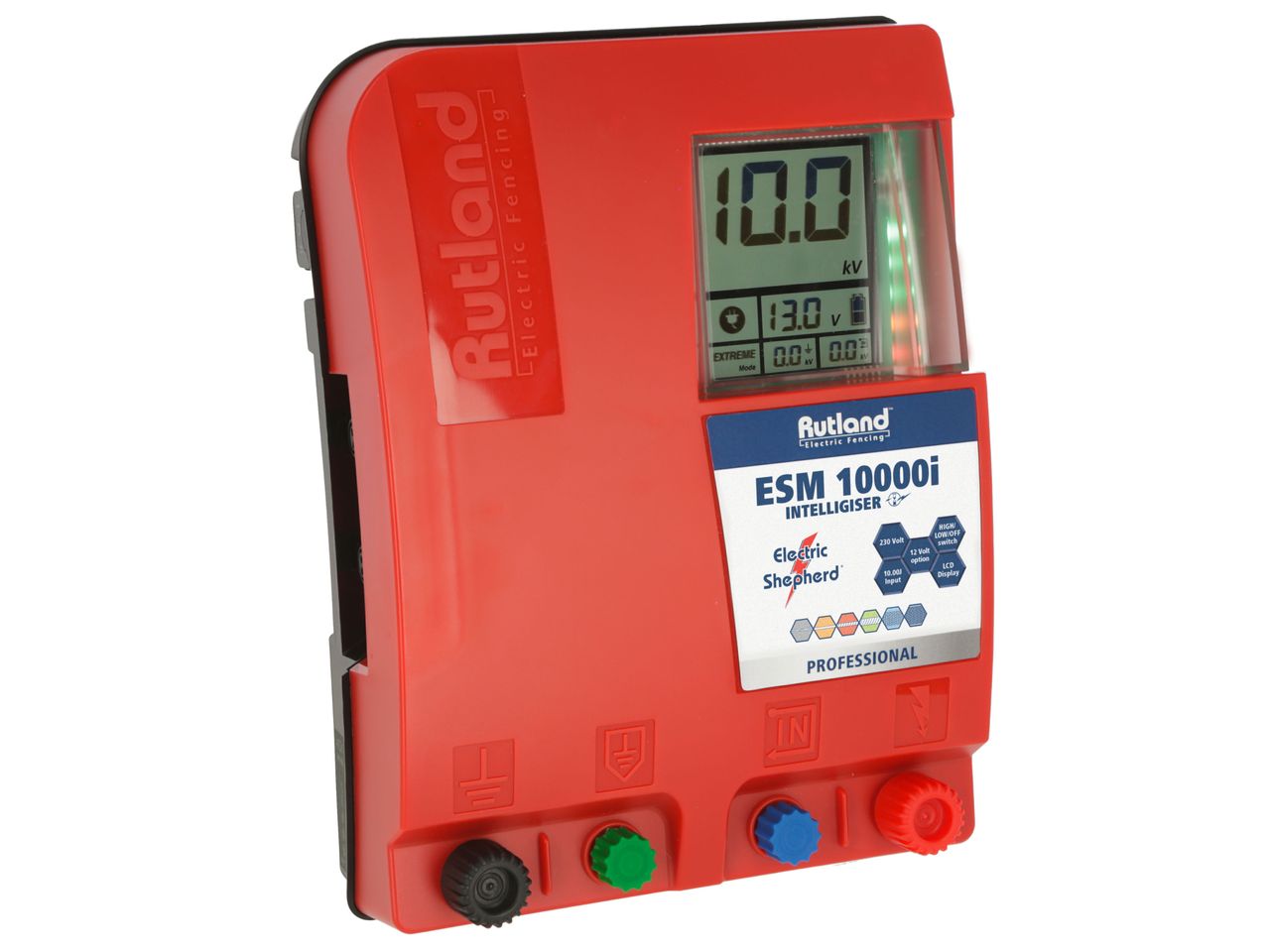

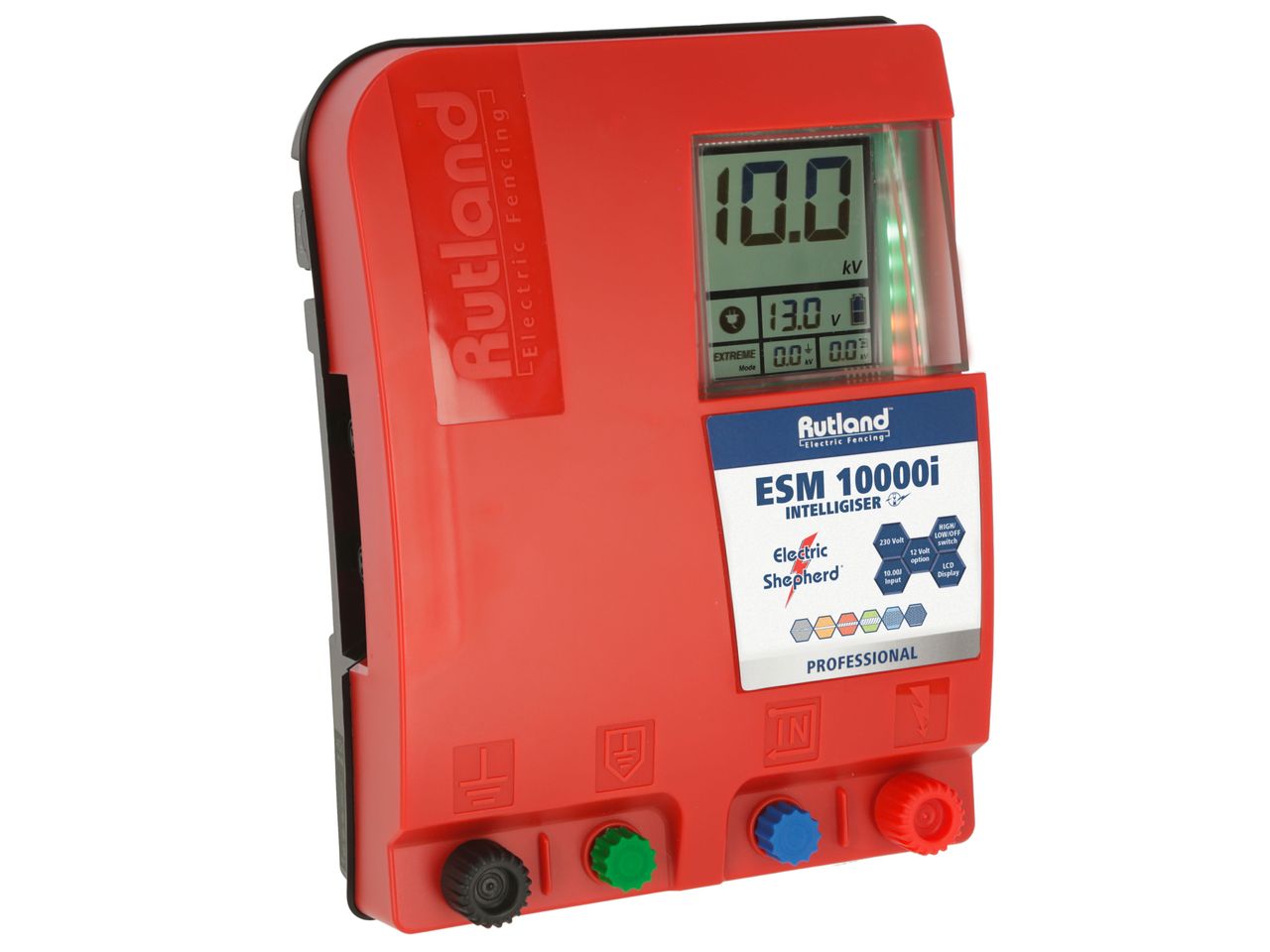

ESM 10000i

very effective 230 volt power supply

  • for long fences with heavy vegetation
  • For robust animals such as bulls, cattle, sheep and for keeping wild animals at bay
  • Extremely high output voltage even under high loads
  • extra large, clearly-arranged, permanently lit digital display
  • LED bar graph display for quick recognition of the current fence status and for monitoring the device from greater distances
  • fence pulse ideally adapted to the fence load, maximum security with minimum energy consumption thanks to Rutland Powertronic
  • Micro-controller controlled
  • high safety in line with the latest safety standards
  • High/low mode – so that it can also be switched ON/OFF
  • Incl. fence and earth connection cable, 230 V power pack and 12 V connection cable
  • ultra powerful 230V device for long fences with heavy vegetation
Retailer Shop

ModelESM 10000iESM 10000i
Ref. no.481925481925EU
Stored Energy10 J10 J
max. discharge energy7 J7 J
max. voltage9900 V9900 V
Voltage in Open Circuit9850 V9850 V
Voltage at 500 Ohms7700 V7700 V
max. fence length without vegetation40 km40 km
max. fence length with medium vegetation13.3 km13.3 km
max. fence length with high vegetation4.4 km4.4 km
Approx. Number of Electrifiable Nets2828
Qty 1 m earth posts33
Power Consumption0.24 A, 0.6 A0.24 A, 0.6 A

Ref. no.
481925
481925EU

  • 1 x 230 volt power pack (371030GB)
  • 1 x reference earth cable
  • 1 x 12 volt connection cable (E269790)
