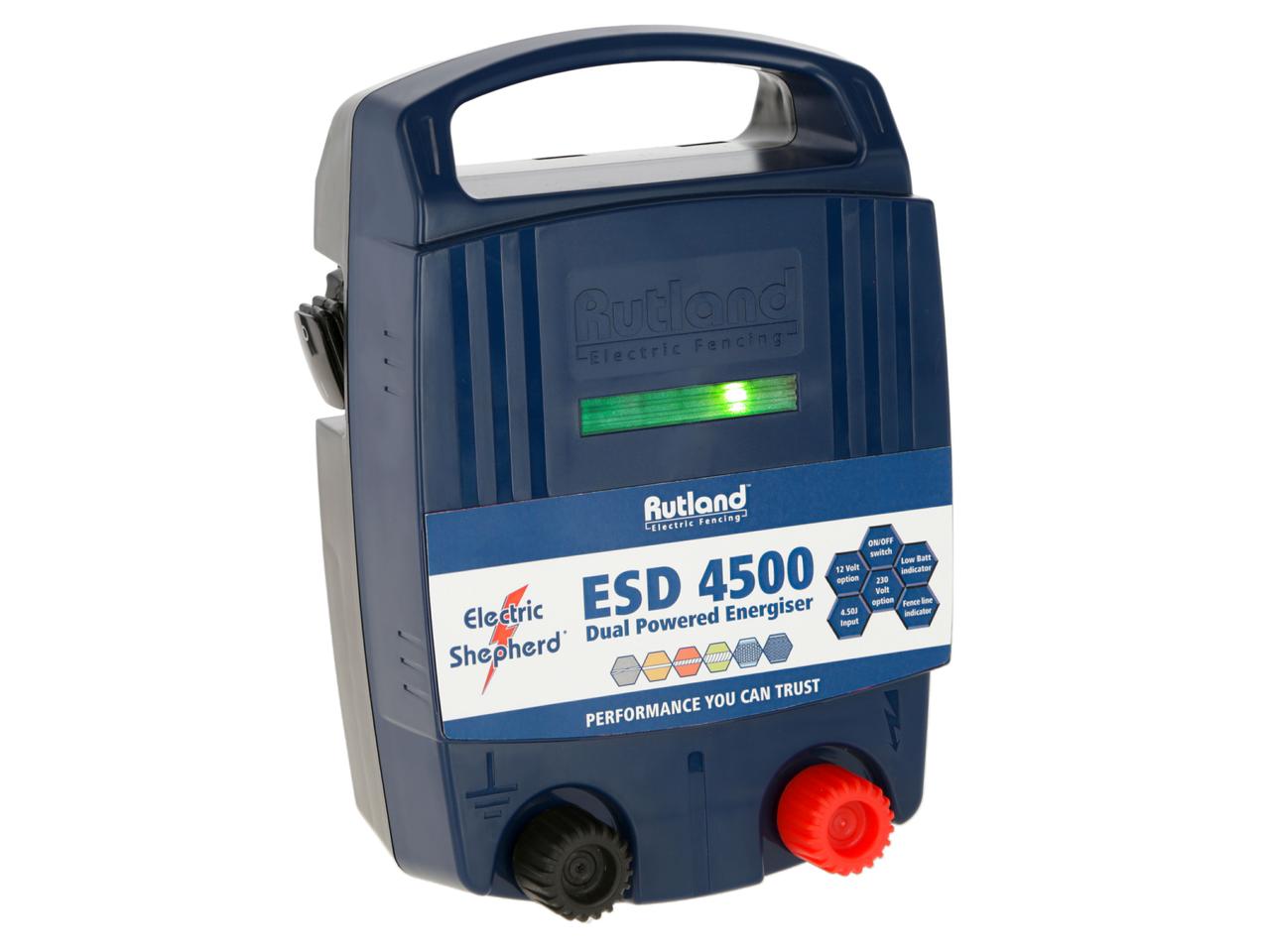

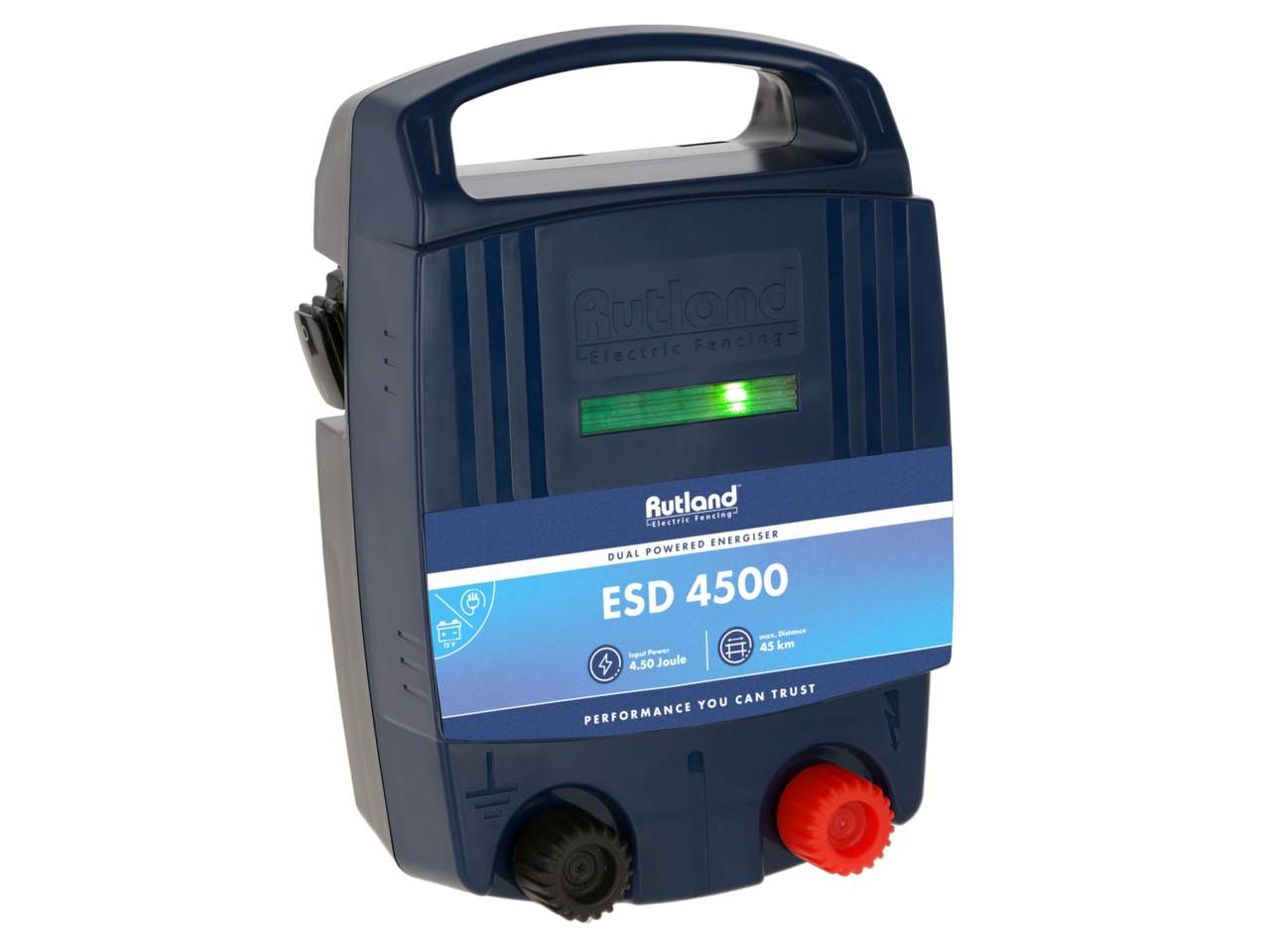

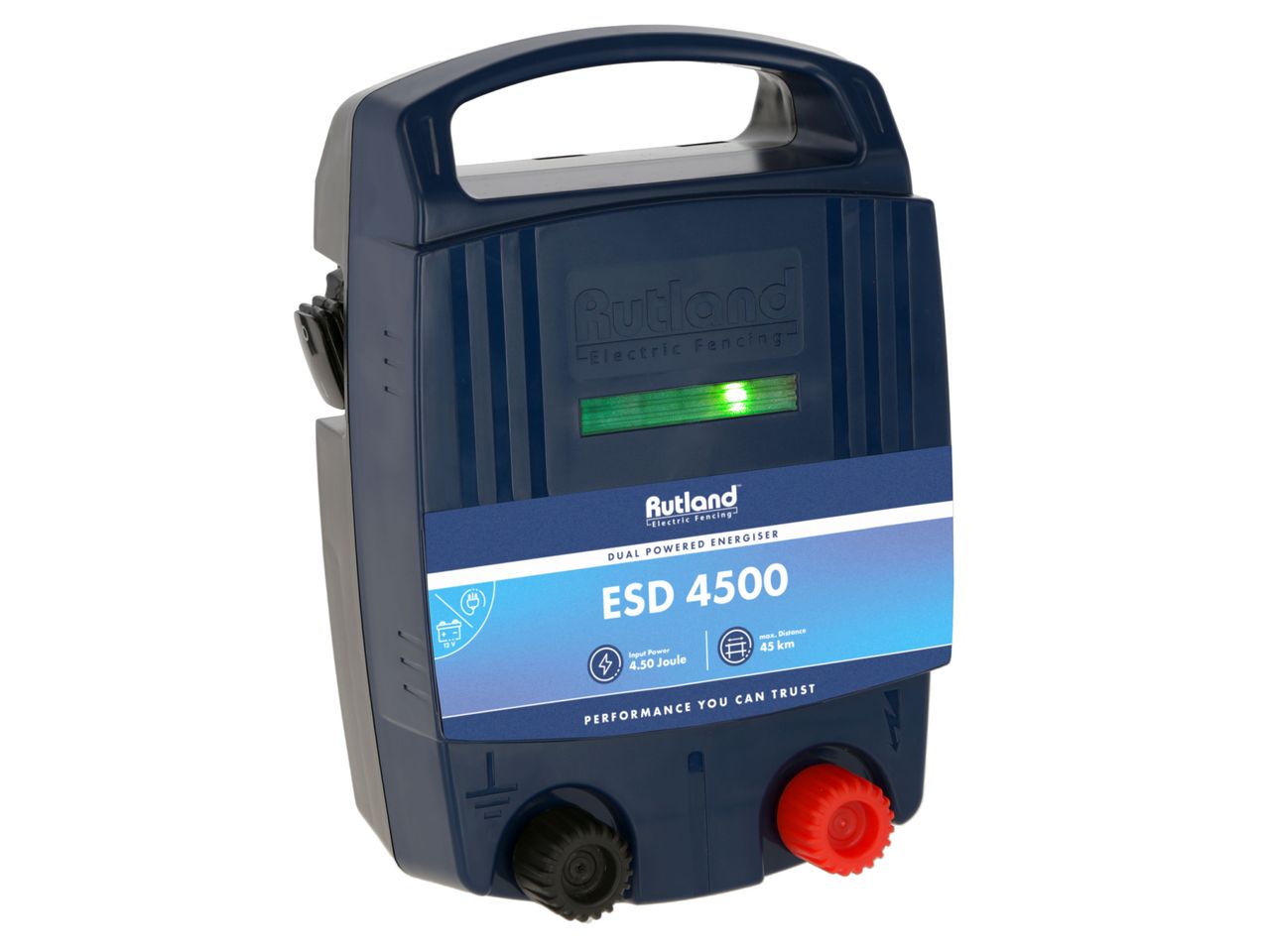

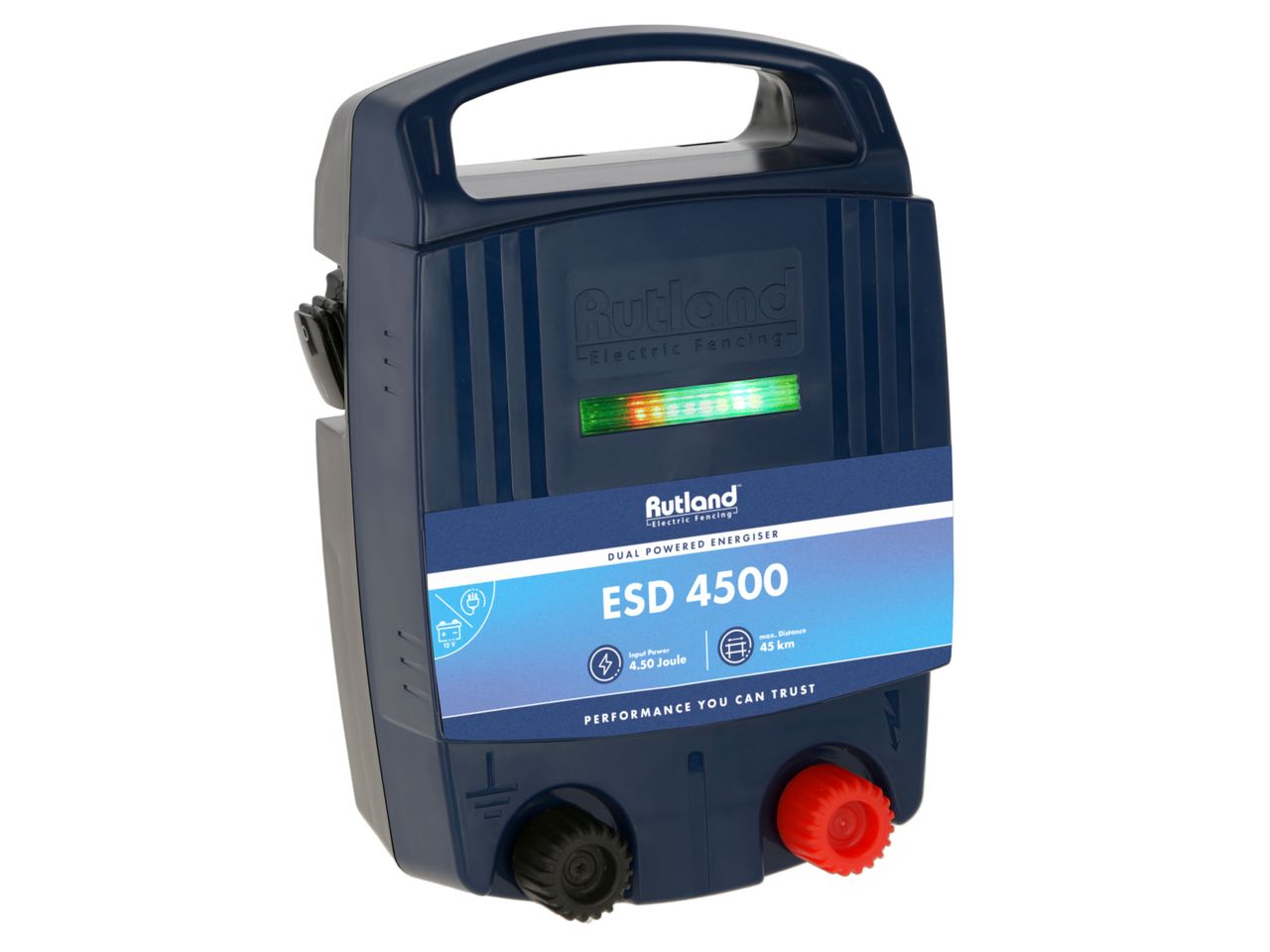

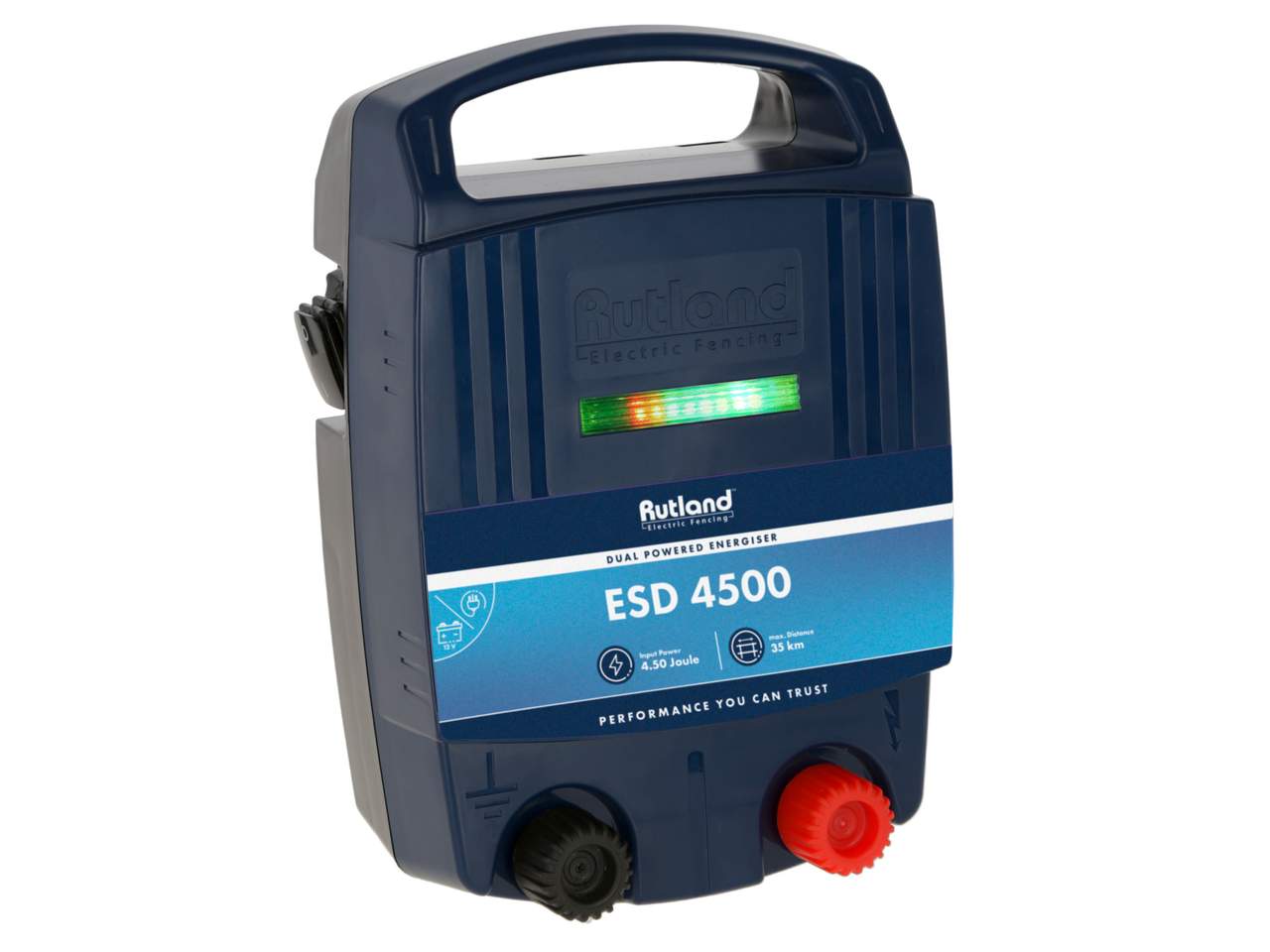

ESD 4500
very powerful DUO fence device for mobile/stationary use
- for longer fences, also with vegetation
- very high output
- fence monitoring indicator
- separate battery indicator
- also ideal for robust animals
- Solar backup possible
- the latest device technology, controlled by microprocessor
- optimised power consumption thanks to energy-saving mode
- deep discharge protection with 12 V operation
- All fence units are certified to European standards
| Model | ESD 4500 | ESD 4500 |
|---|---|---|
| Ref. no. | 481874 | 481874EU |
| Stored Energy | 4.5 J | 4.5 J |
| max. discharge energy | 3 J | 3 J |
| max. voltage | 9800 V | 9800 V |
| Voltage in Open Circuit | 9800 V | 9800 V |
| Voltage at 500 Ohms | 5400 V | 5400 V |
| max. fence length without vegetation | 45 km | 45 km |
| max. fence length with medium vegetation | 15 km | 15 km |
| max. fence length with high vegetation | 5 km | 5 km |
| Approx. Number of Electrifiable Nets | 22 | 22 |
| Qty 1 m earth posts | 2 | 2 |
| Power Consumption | 150 mA, 245 mA | 150 mA, 245 mA |
| Ref. no. |
|---|
| 481874 |
| 481874EU |

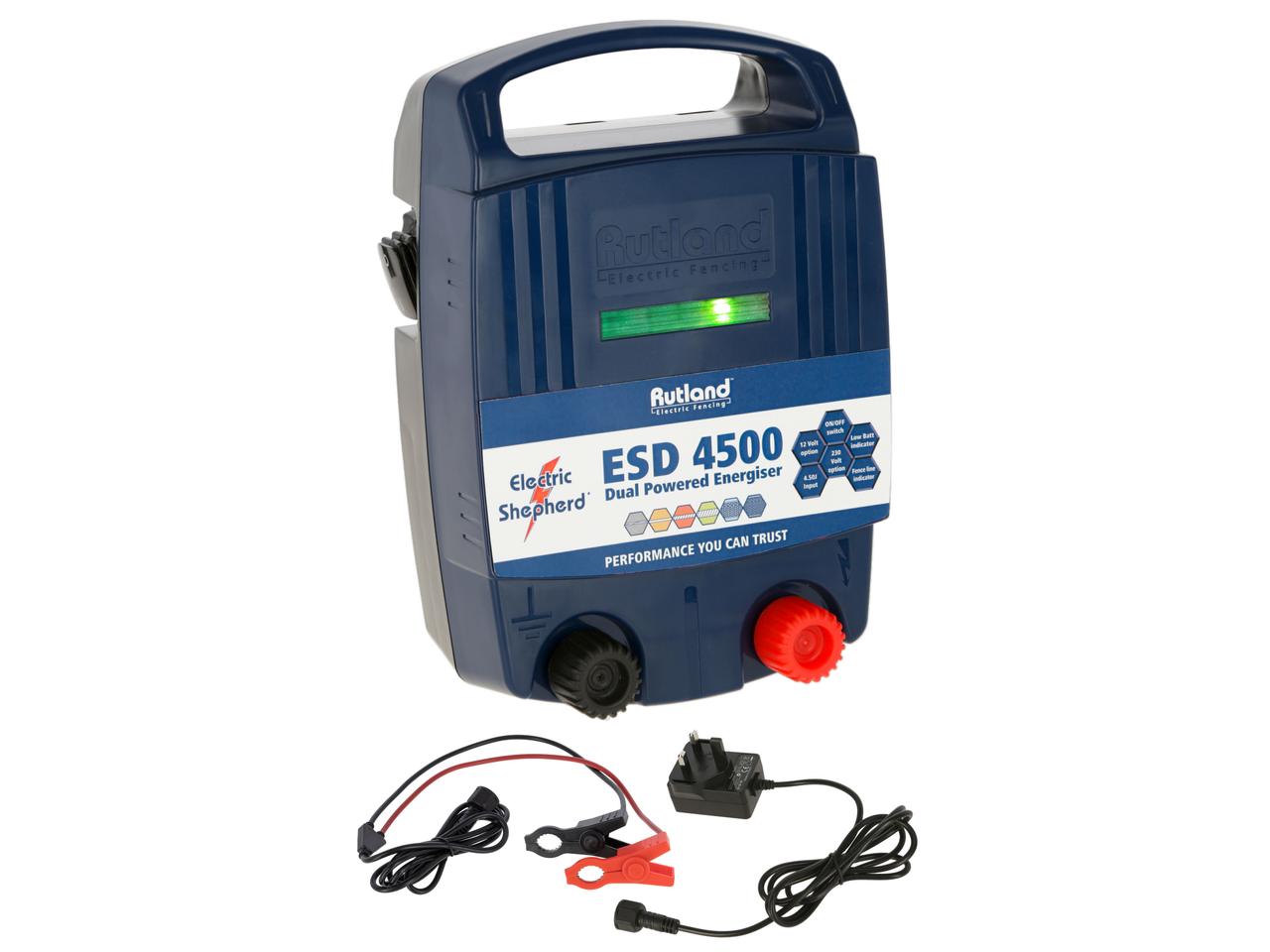

- 1 x 12/230 Volt DUO Fence Device
- 1 x 230 volt power pack (371030GB)
- 1 x 12-Volt connection cable (E268739)
- 1 x ground spike
- 1 x fence connector cable
- 1 x ground connector cable
- 1 x warning sign
