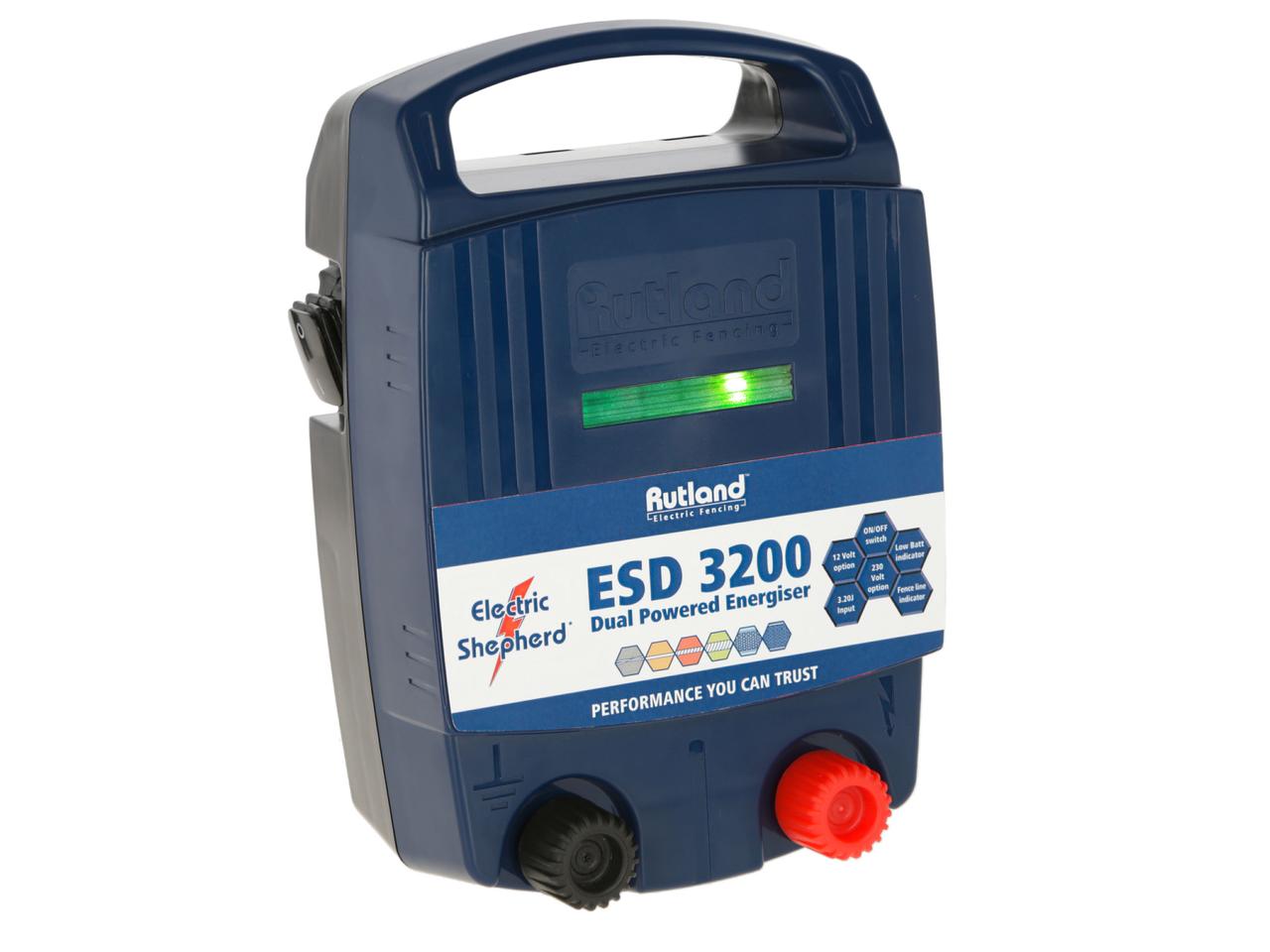

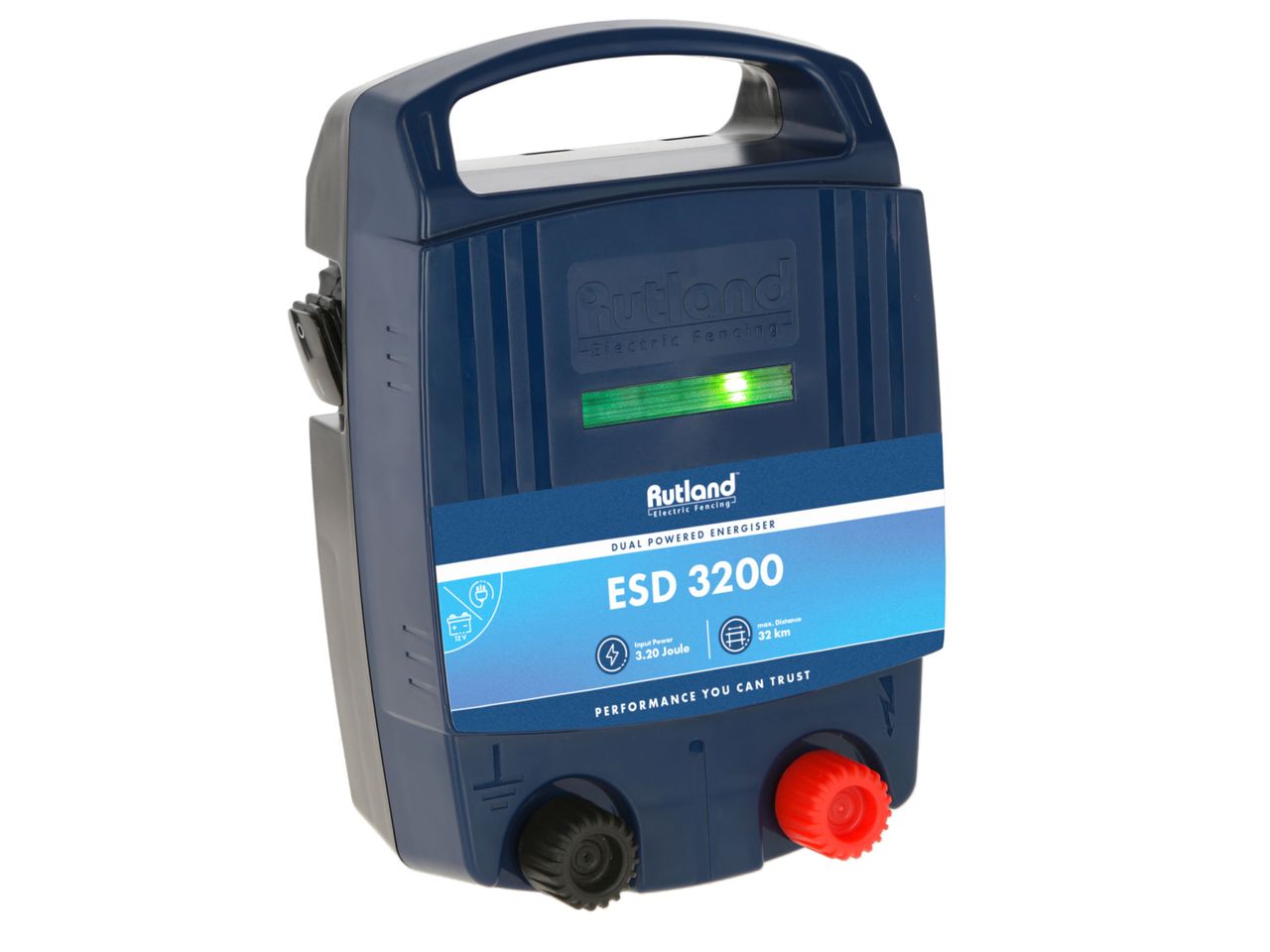

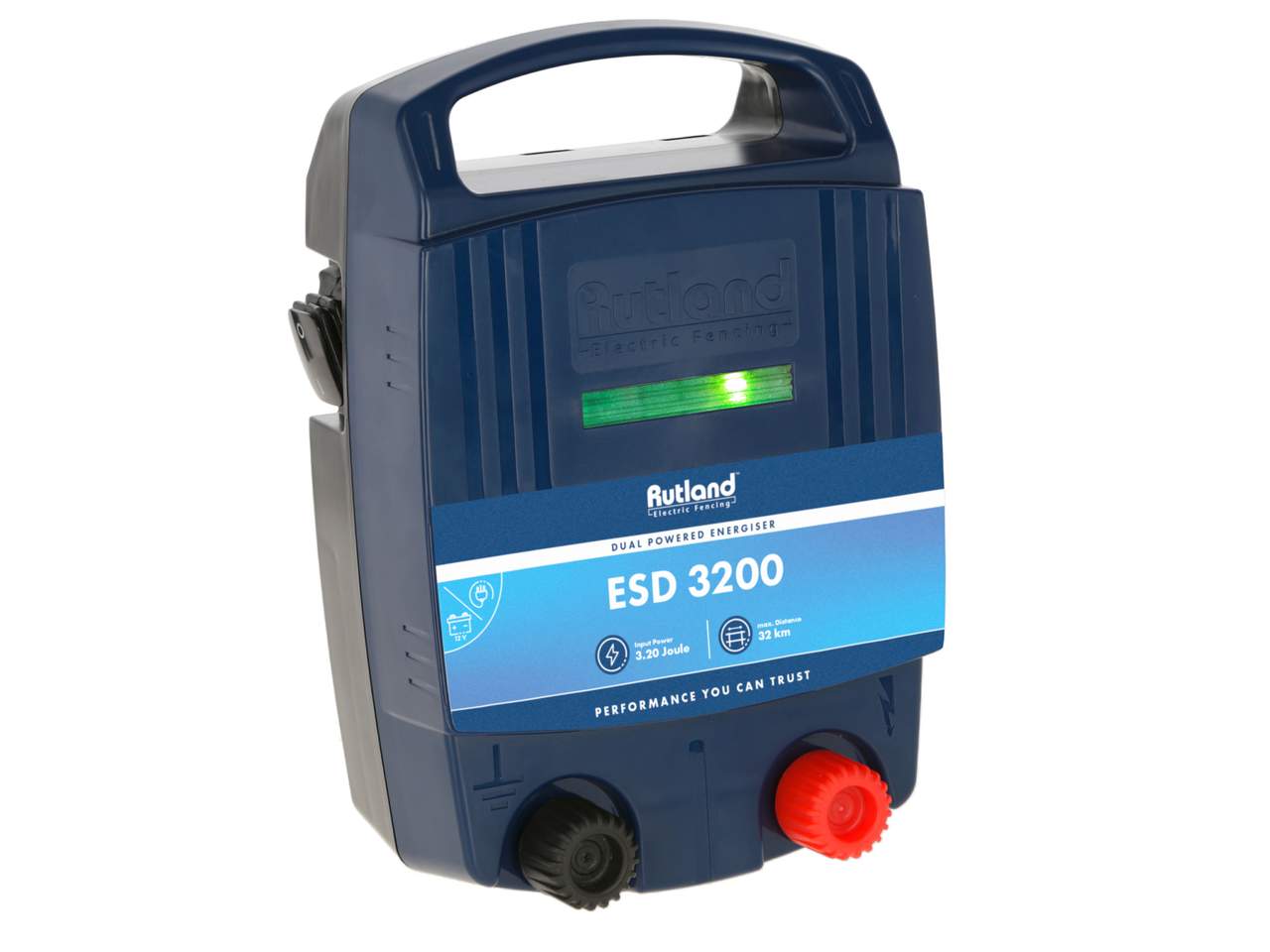

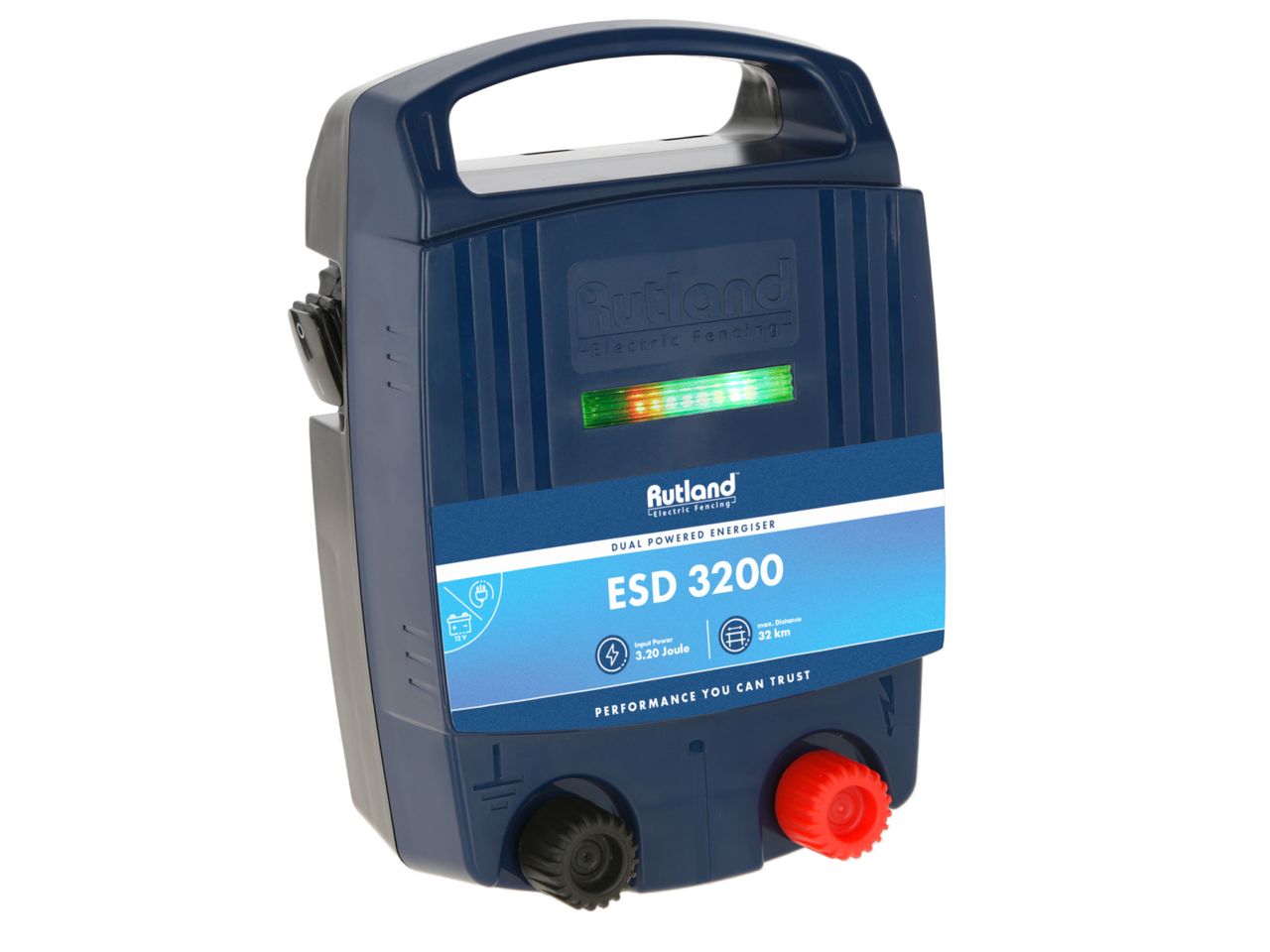

ESD 3200
Powerful DUO fence device for mobile/stationary use
- for normal fences and light vegetation
- high output
- fence monitoring indicator
- separate battery indicator
- Solar backup possible
- with On/Off switch
- the latest electric fencing technology - microprocessor controlled
- optimised power consumption thanks to energy-saving mode
- deep discharge protection with 12 V operation
- all fence units are certified to European Standards
| Model | ESD 3200 | ESD 3200 |
|---|---|---|
| Ref. no. | 481872 | 481872EU |
| Stored Energy | 3.2 J | 3.2 J |
| max. discharge energy | 2.3 J | 2.3 J |
| max. voltage | 9800 V | 9800 V |
| Voltage in Open Circuit | 9800 V | 9800 V |
| Voltage at 500 Ohms | 5300 V | 5300 V |
| max. fence length without vegetation | 32 km | 32 km |
| max. fence length with medium vegetation | 10.7 km | 10.7 km |
| max. fence length with high vegetation | 3.6 km | 3.6 km |
| Approx. Number of Electrifiable Nets | 16 | 16 |
| Qty 1 m earth posts | 2 | 2 |
| Power Consumption | 115 mA, 185 mA | 115 mA, 185 mA |
| Ref. no. |
|---|
| 481872 |
| 481872EU |

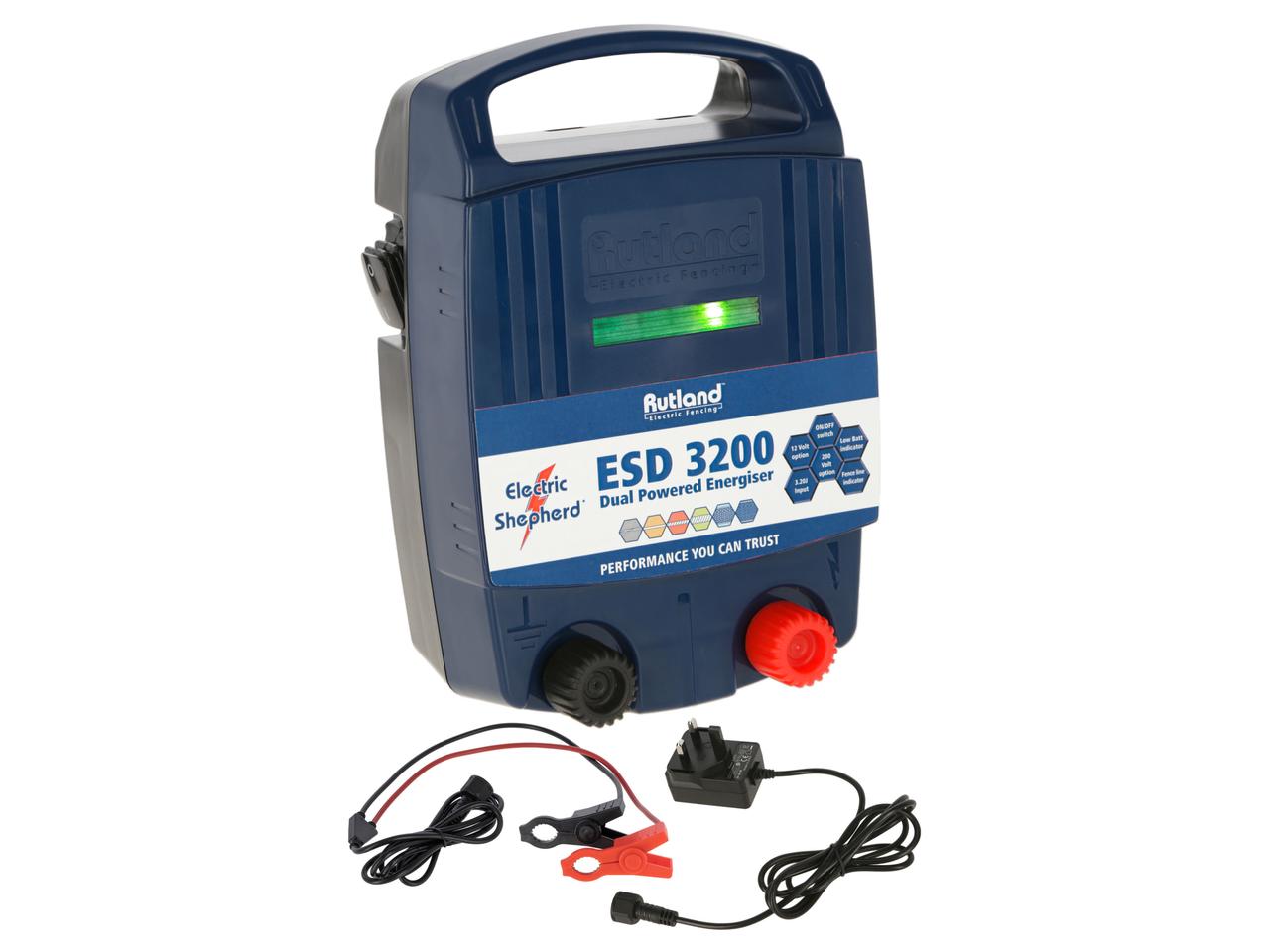

- 1 x 230 volt power pack (371030GB)
- 1 x 12 volt connection cable (E269790)
- 1 x earth rod
- 1 x fence and ground connection cable
