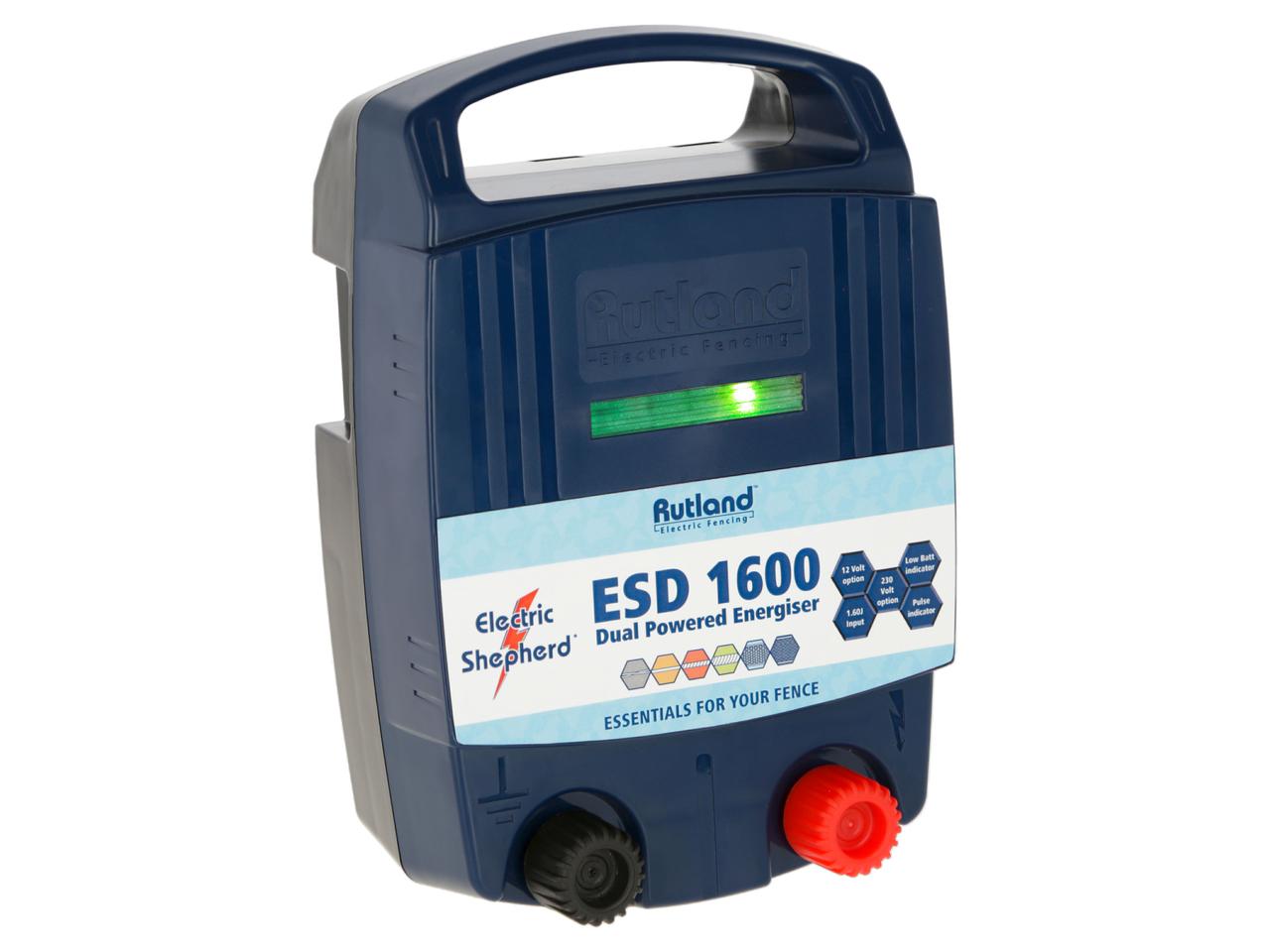

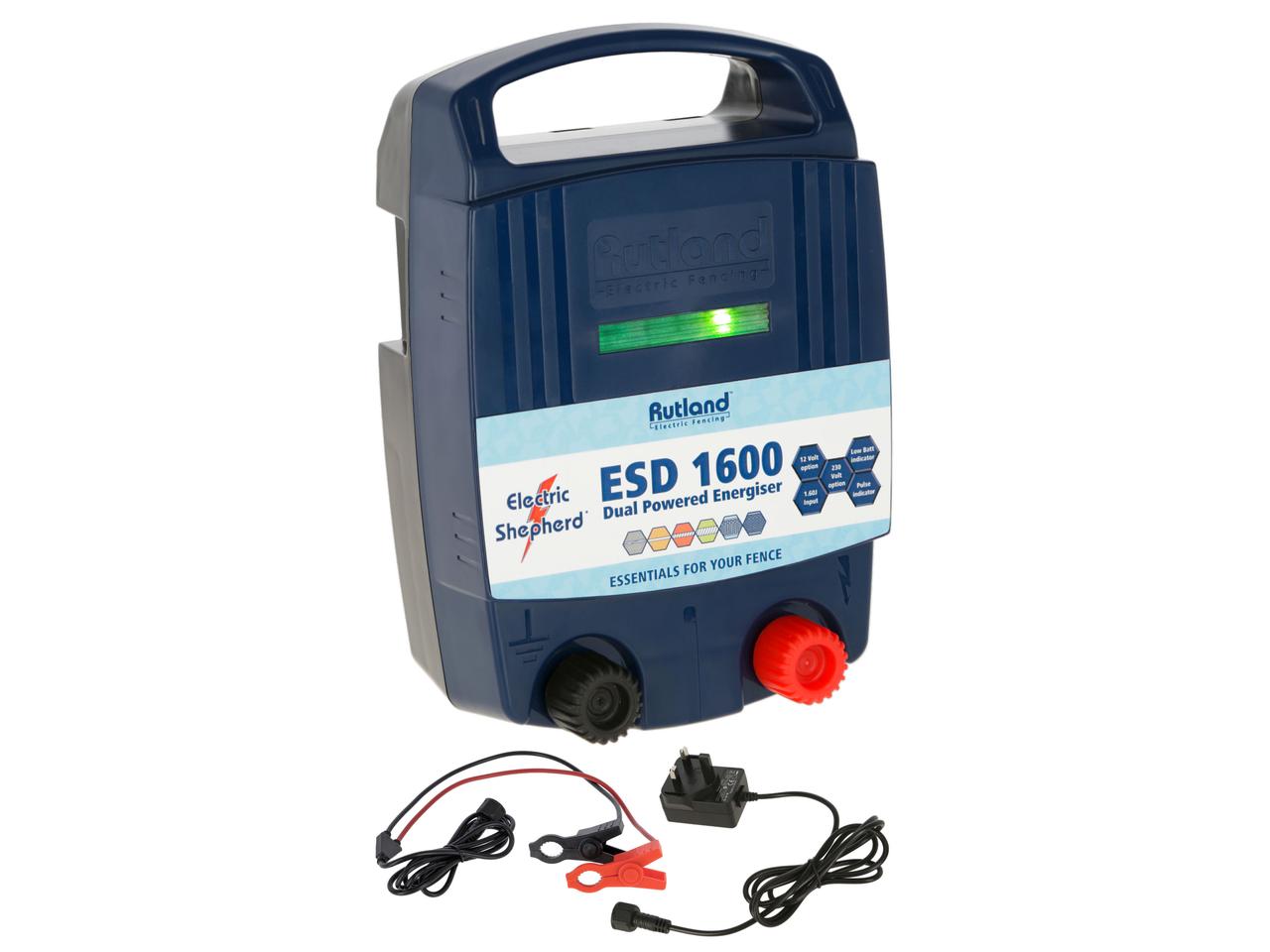

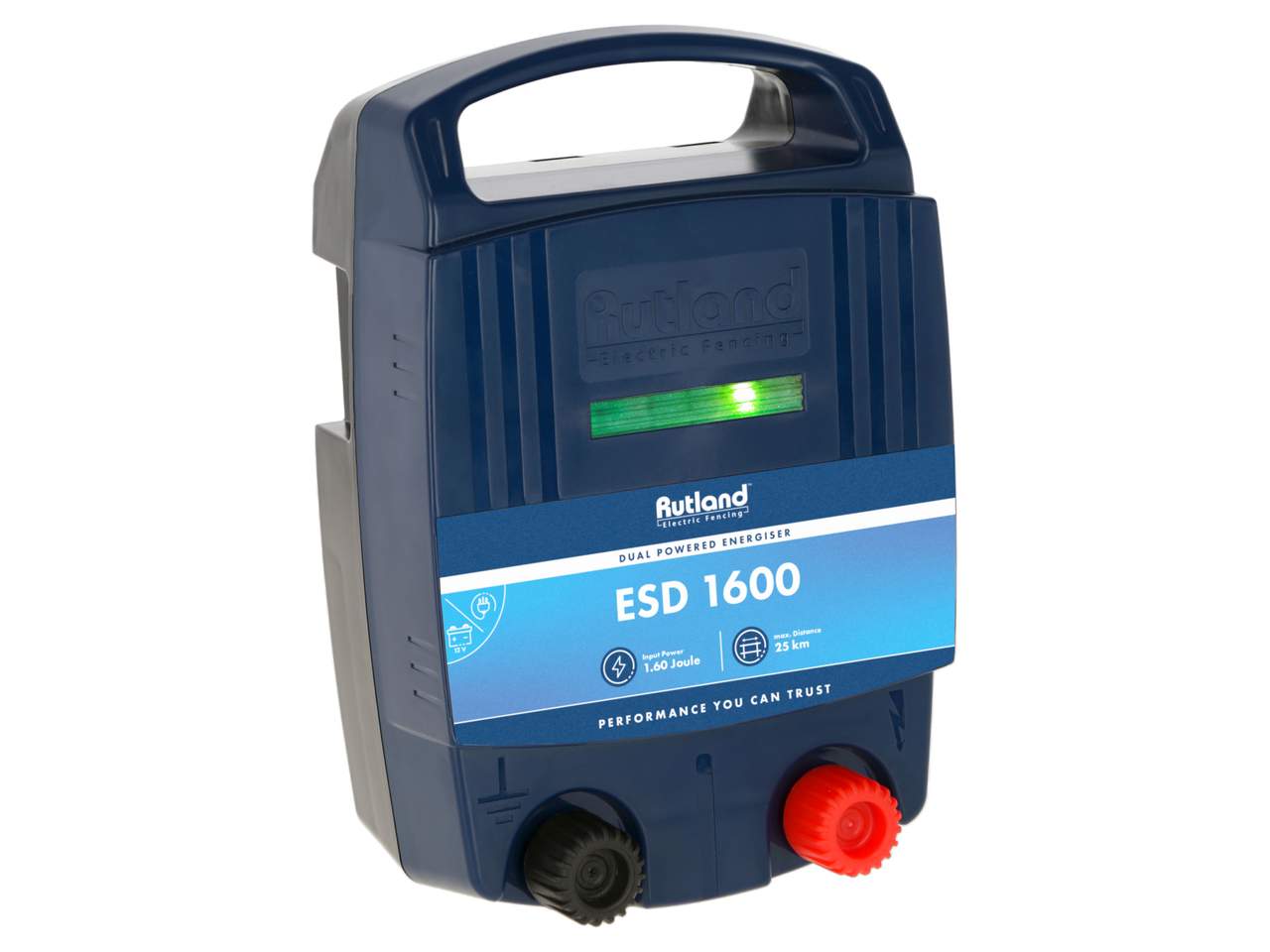

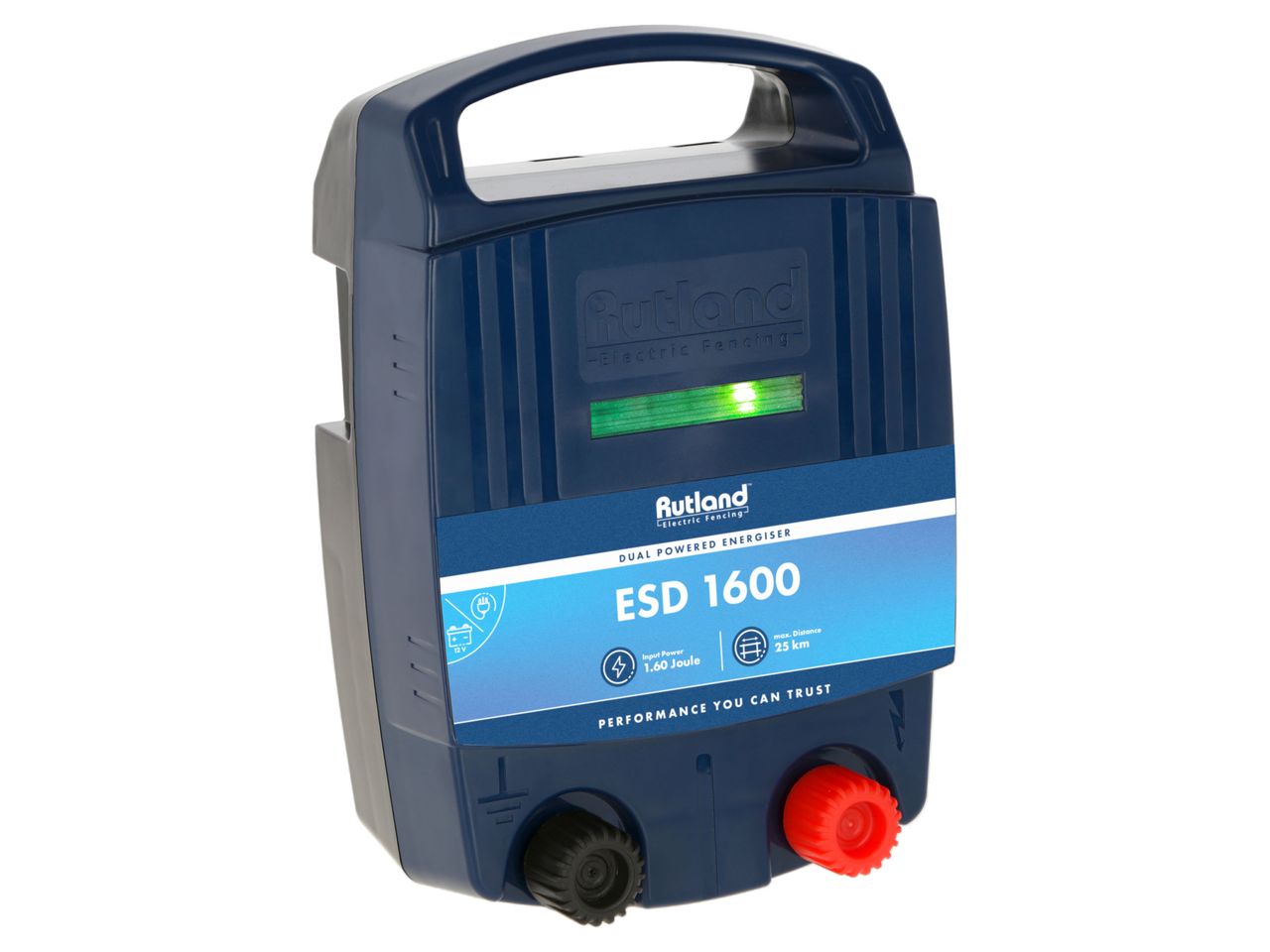

| Model | ESD 1600 | ESD 1600 |
|---|---|---|
| Ref. no. | 421871 | 421871EU |
| Stored Energy | 1.6 J | 1.6 J |
| max. discharge energy | 1 J | 1 J |
| max. voltage | 12000 V | 12000 V |
| Voltage in Open Circuit | 9000 V | 9000 V |
| Voltage at 500 Ohms | 4100 V | 4100 V |
| max. fence length without vegetation | 25 km | 25 km |
| max. fence length with medium vegetation | 8.3 km | 8.3 km |
| max. fence length with high vegetation | 2.8 km | 2.8 km |
| Approx. Number of Electrifiable Nets | 12 | 12 |
| Qty 1 m earth posts | 1 | 1 |
| Power Consumption | 85 mA | 85 mA |
| Ref. no. |
|---|
| 421871 |
| 421871EU |
