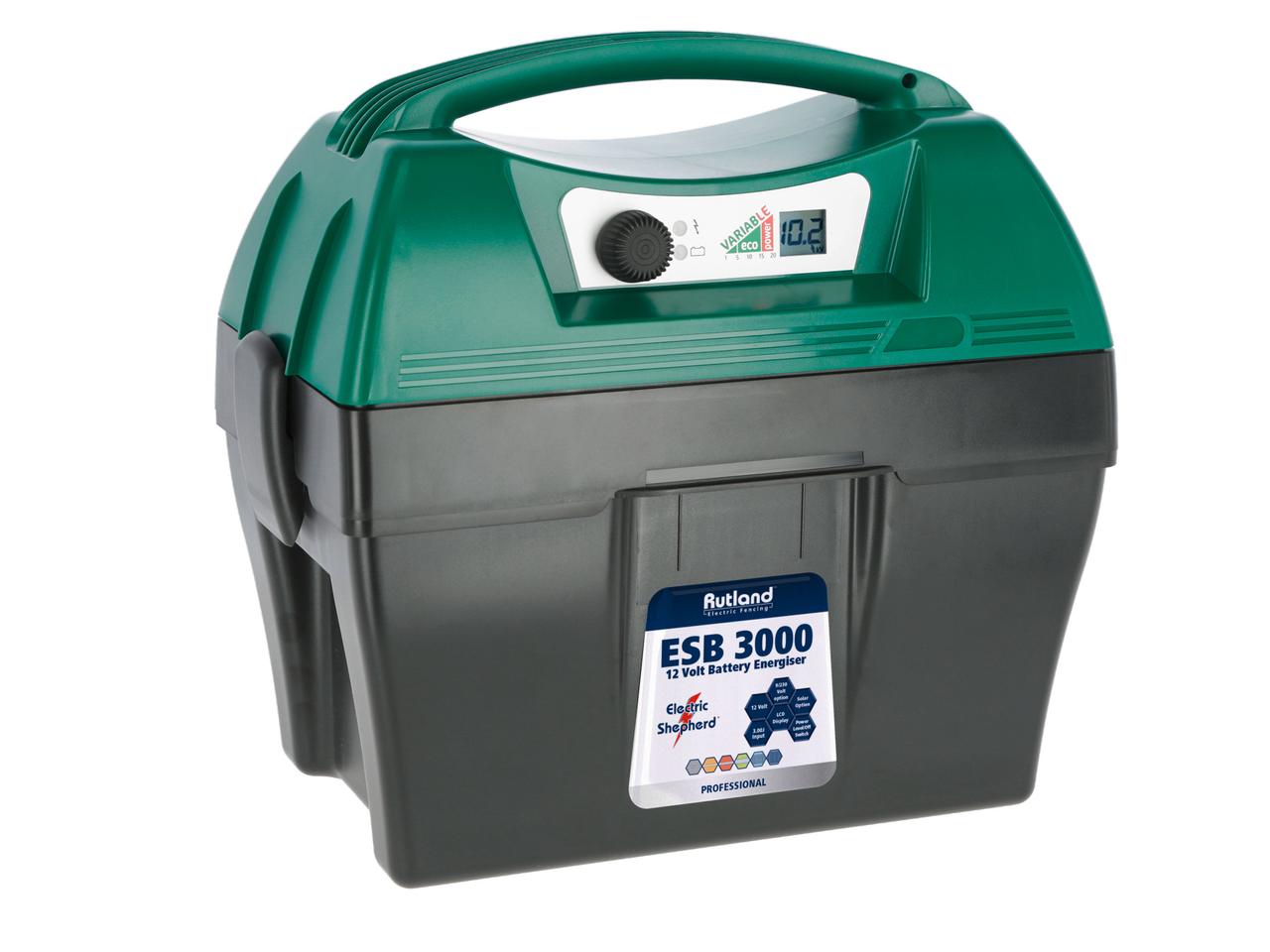

ESB 3000
powerful 12 volt fence device for mobile use
- for long fences and robust animals
- digital display for output voltage, power levels and battery voltage
- steplessly adjustable power level through regulator
- optional operation possible with 9 V dry battery alkaline 165 Ah or over 230 V with a separate power pack item no. 371012GB (not included)
- optimised power consumption thanks to energy-saving mode
- with 12 Volt full discharge protection
- microprocessor controlled
- solar option possible
- produced in line with the latest EU safety standards
- incl. fence and ground connection cable
| Model | ESB 3000 | ESB 3000 |
|---|---|---|
| Ref. no. | 481201 | 481203 |
| Stored Energy | 3 J | |
| max. discharge energy | 2 J | |
| max. voltage | 10500 V | |
| Voltage in Open Circuit | 9600 V | |
| Voltage at 500 Ohms | 5200 V | |
| max. fence length without vegetation | 20 km | |
| max. fence length with medium vegetation | 6.7 km | |
| max. fence length with high vegetation | 2.2 km | |
| Approx. Number of Electrifiable Nets | 10 | |
| Qty 1 m earth posts | 2 | |
| Power Consumption | 17 mA, 220 mA |
| Ref. no. | Description |
|---|---|
| 481201 | no solar module |

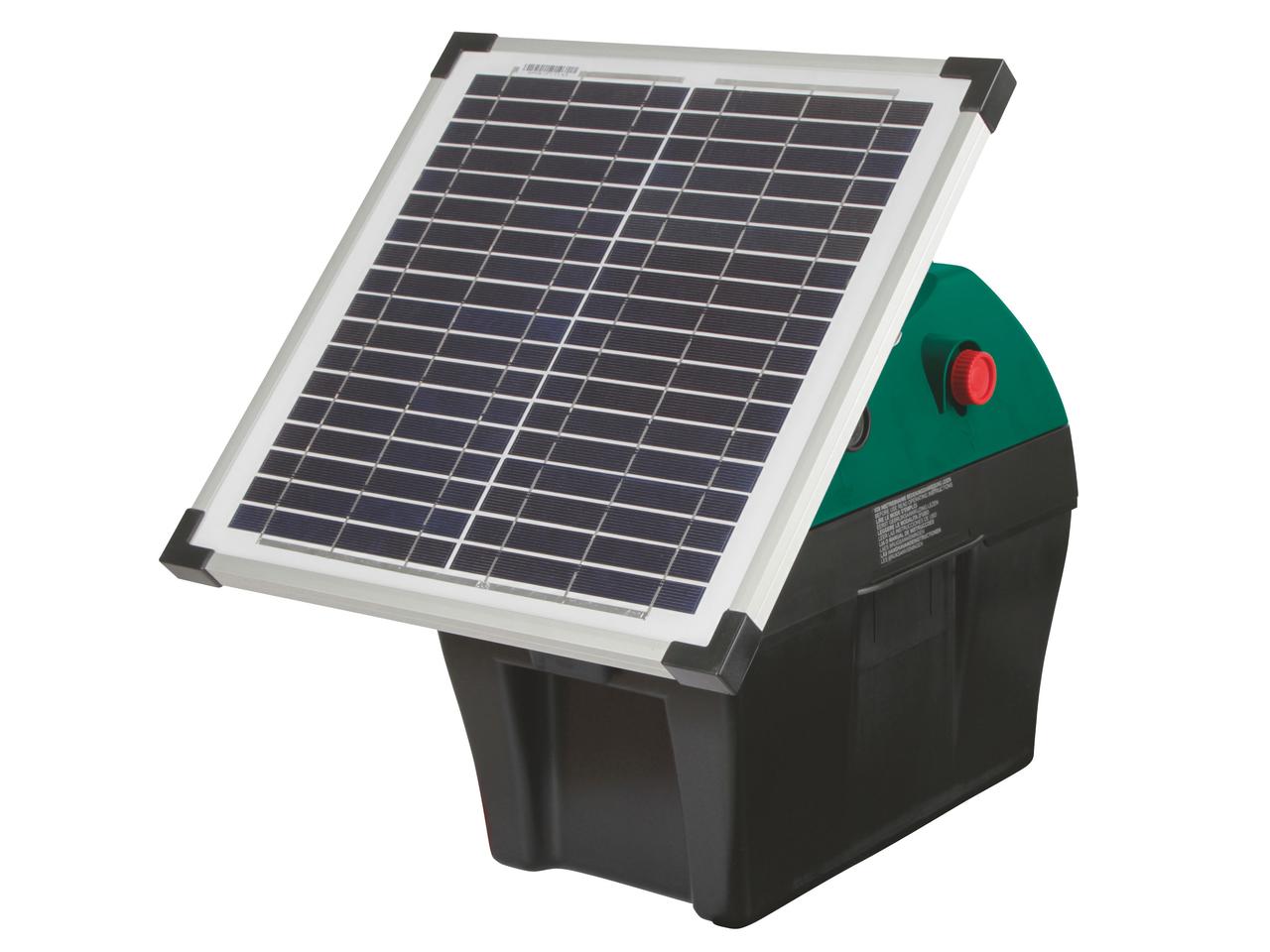

| 481203 | incl. 25 Watt Solar Module |
- 1 x 12 Volt connection cable
- 9 Volt Connector Cable
- 1 x fence connector cable
- 1 x ground connector cable
